Most people get a quick mental image when the term “Ladder” is used in a sentence: however the question of how to protect someone using a ladder tends to be more of a challenge to answer. A good place to start the discussion of ladder safety is to acknowledge that ladders have been around for a long time: yet the regulatory landscape is shifting. Explore ways to address OSHA’s Working-Walking Standard 29 CFR part 1910 and personal fall protection techniques for fixed ladders. According to OSHA: a fixed ladder is permanently attached to a structure: building: or equipment: and those extending more than 24 feet now require specialized safety measures. The 2018 updates mandate that new or modified ladders must be equipped with a Personal Fall Arrest System (PFAS) or a Ladder Safety System (LSS): effectively phasing out traditional cages which no longer satisfy modern safety criteria for fall prevention.
Ladders have been around for a long time
Multiple sources including Wikipedia[1] describe similar versions of the first recorded example of a ladder being featured in a Mesolithic rock painting that is at least 10,000 years old, in the Spider Caves in Valencia, Spain. The painting depicts two humans using a ladder to reach a wild honeybee nest to harvest honey. The ladder is depicted as long and flexible, possibly made from some sort of grass.
The definition of a Fixed Ladder
OSHA says a ladder is a device with rungs, steps, or cleats used to gain access to a different elevation. Additionally, OSHA says a fixed ladder is a ladder with rails or individual rungs that is permanently attached to a structure, building, or equipment. Fixed ladders include individual-rung ladders, but not ship stairs, step bolts, or manhole steps. [2]
The use of a ladder includes an inherent fall hazard to the user

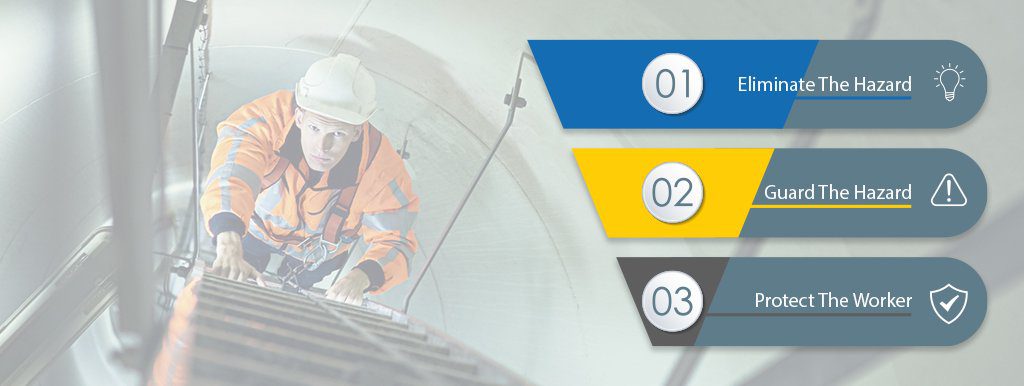

Safety hazard control methods for a variety of concerns can generally be described as three options with the preferred option being “Eliminate The Hazard” followed by the next best solution being “Guard The Hazard” followed by the least preferred answer being “Protect The Worker”.
(1st) Eliminate The Hazard – The presence of working levels at different elevations cannot be resolved.
(2nd) Guard The Hazard – The existence of working levels separated by more than 4ft of elevation means the user can be exposed to a fall hazard in excess of OSHA general industry standards. An example of this type of solution would be an elevator.
(3rd) Protect The Worker – The least preferred hazard control but necessary when the hazard cannot be eliminated or guarded.
Fixed ladders are found in a wide variety of industries and applications such as inside a building for accessing a roof hatch, tall machinery, and elevated platforms or outdoors for accessing rooftops, silos and towers.
So, if ladders have been around for such a long time and they are currently used in so many applications, why is the subject of fixed ladder safety such a focus in today’s safety industry (beyond the obvious concern of “someone could fall”)? Perhaps one reason is that OSHA’s requirements for fixed ladder safety were updated in 2018 and many people are still studying what the new regulations mean to them in their world. OSHA describes fixed ladder safety in two primary sections of the Code of Federal Regulations (CFR). These two sections are 1910.23-Ladders [3] and 1920.28-Duty to have fall protection and falling object protection [4]. In order to simplify the subject of fixed ladder safety, the following is an abbreviated explanation of the current OSHA requirements that apply.
OSHA standards & how they apply to various ladders
The standard applies to all ladders except those used for emergency operations such as firefighting, rescue, and tactical law enforcement operations, or training for these operations or if the ladder is an integral part of machines or equipment.
Fixed ladder rungs must be parallel, level, and uniformly spaced between 10 and 14 inches apart except for elevator shafts where the spacing must be between 6 and 16.5 inches or telecommunication towers where the rungs must be no more than 18 inches apart. Fixed ladder rungs must have a minimum clear width of 16 inches measured before the installation of ladder safety systems. The minimum perpendicular distance from the centerline of the steps or rungs, or grab bars, or both, to the nearest permanent object in back of the ladder is 7 inches except for elevator pit ladders which can have a minimum perpendicular distance of 4.5 inches.
Grab bars do not protrude on the climbing side beyond the rungs of the ladder that they serve. The side rails of step through or sidestep ladders extend at least 42 inches above the top of the access level or landing platform served by the ladder. For step through ladders, the steps or rungs are omitted from the extensions, and the side rails are flared to provide between 24 and 30 inches of clearance except for ladders with a ladder safety system where the maximum clearance must not exceed 36 inches.
The step-across distance from the centerline of the rungs for step through ladders must be between 7 and 12 inches to the nearest edge of the structure, building, or equipment accessed from the ladder and side-step ladders must be between 15 and 20 inches to the access point of the platform edge.
Fixed ladders that do not have cages or wells must have a clear width of at least 15 inches on each side of the ladder centerline to the nearest permanent object and a minimum perpendicular distance of 30 inches from the centerline of the steps or rungs to the nearest object on the climbing side. When unavoidable obstructions are encountered, the minimum clearance at the obstruction may be reduced to 24 inches, provided deflector plates are installed.
If a fixed ladder extends more than 24 feet above a lower level, then:
- Existing fixed ladders installed before November 19, 2018, must be equipped with a personal fall arrest system, ladder safety system, cage, or well.
- New fixed ladders installed on and after November 19, 2018, must be equipped with a personal fall arrest system or a ladder safety system. (Note – Cages and wells no longer satisfy)
- Existing fixed ladder modifications When a fixed ladder, cage, or well, or any portion of a section thereof, is replaced, a personal fall arrest system or ladder safety system must be installed in at least that section of the fixed ladder, cage, or well where the replacement is located. (Note – Fixed ladder modifications must include the addition of personal fall arrest systems or ladder safety systems)
- Final deadline. On and after November 18, 2036, all fixed ladders must be equipped with a personal fall arrest system or a ladder safety system.
Ladder Safety Systems

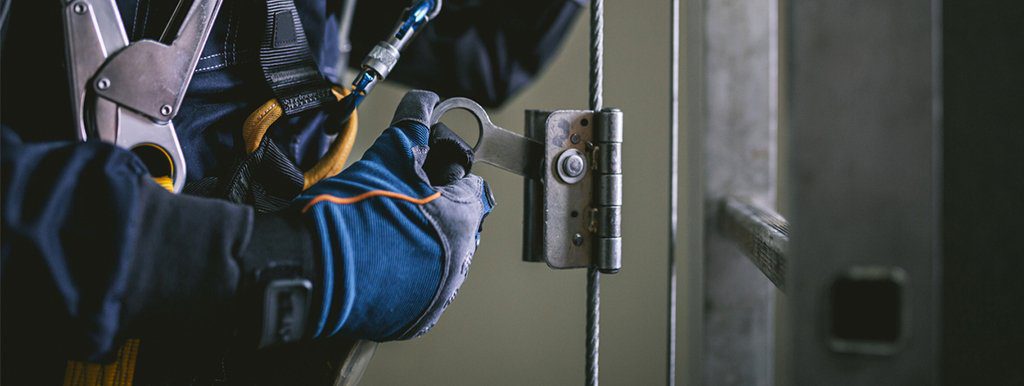

One type of Ladder Safety System is a cable assembly which is anchored to the rungs at the top of the ladder and includes intermediate brackets to hold the cable in place plus a cable bracket at the bottom of the system that applies tension to the cable so it stays in place along the length of the ladder. The system includes a cable “traveler” which the user attaches to the front sternal D-Ring on their harness. The cable traveler glides up and down the cable as the user moves and locks onto the cable in the event of a fall. Cable type ladder safety systems are often the most economical solution for ladders that are more than 50ft tall. They are also often used on other types of structures like monopoles and lattice towers.
The other type of Ladder Safety System is a rigid track assembly that is anchored to the rungs along the length of the system. The system includes a track “carriage” which the user attaches to the front sternal D-Ring on their harness. The carriage glides up and down the track as the user moves and locks onto the track in the event of a fall. Track type ladder safety systems generally apply lower forces to the ladder since the system is rigid, so the forces are distributed along the length of the system at each rung attachment, therefore they are sometimes a simpler solution for lower strength ladders. Track type systems are also a simpler solution sometimes in outdoor environments where high wind speeds are expected since they are not susceptible to vibration (aka cable flutter) which must be designed for with cable systems.
The typical Personal Fall Arrest System is a davit system that is attached to the rungs at the top of the ladder. The davit has a self-retracting lifeline (SRL) attached to it and the user connects to the system by attaching the SRL snap-hook to the back dorsal D-Ring on their harness. The SRL extends and retracts as the user moves and the SRL locks in the event of a fall. Davit type systems are sometimes seen as more user friendly since the attachment is made at the back D-Ring which all OSHA compliant harnesses have rather than having to attach at a front D-Ring which is typically a specially ordered harness. The davit also provides the user a natural grab bar for stability at the top of the ladder.
Flexible Lifeline Systems has decades of experience designing, installing, and training users on all of these systems and our Systems Specialist are happy to offer advice about which style is the best fit for your situation. Because an arrested fall is possible with all of these systems, a proper rescue plan should be a part of your safety program and our Systems Specialist are available to assist with advice about rescue option also.
Compliance
- OSHA 1910.28(b)(9): Fixed ladders extending more than 24 feet must be equipped with a ladder safety system or personal fall arrest system to remain compliant with updated 2018 regulations.
- ANSI A14.3 Standards: Ladder safety systems: including vertical lifelines and rigid tracks: are engineered to limit the fall distance to less than two feet: significantly reducing impact forces.
- Phase-Out of Cages: As of November 19, 2018: cages are no longer considered adequate fall protection for new or modified fixed ladders: with a total mandatory replacement deadline of 2036.
- Structural Load Validation: Rung attachments and mounting brackets must be verified by a “Qualified Person” to support the dynamic loads of a multi-user fall event without structural failure.
- Ladder Dimension Requirements: Fixed ladder rungs must have a minimum clear width of 16 inches and be spaced uniformly between 10 and 14 inches apart to ensure safe climbing mechanics.
New Safety-Critical FAQs
- Who is qualified to determine if my ladder can support a new safety system? A Qualified Person: typically a structural engineer: must evaluate the ladder rungs and side rails. Adding a safety system introduces dynamic fall loads that older: corroded ladders may not be structurally capable of handling without reinforcement.
- What happens to the safety system after it arrests a fall? Any traveler: carriage: or cable that has arrested a fall must be immediately removed from service. The ladder and the entire safety assembly must undergo a detailed structural assessment by a Qualified Person before being recertified.
- How do environmental factors like high winds affect cable-based systems? High winds cause “cable flutter”: which can lead to material fatigue and wear on intermediate brackets. For outdoor towers in wind-prone areas: a rigid track system is often preferred as it is not susceptible to vibration damage.
- What are the hazards of using a back-attached SRL on a ladder safety system? While some davit systems allow back D-ring attachment: most ladder safety systems require a front sternal D-ring. Attaching to the back for a vertical climb can lead to improper body positioning and increased “free fall” distance if a slip occurs.
- Can a ladder safety system be used for more than one person at a time? Only if specifically engineered and labeled for multi-user capacity. Most standard systems are rated for a single user per span to prevent the dynamic load of one fall from causing a secondary fall for another climber.
- Why is a rescue plan mandatory for fixed ladder systems? An arrested fall on a ladder leaves the worker suspended: often at extreme heights. Without a documented rescue plan and specialized equipment: the worker is at risk of suspension trauma within minutes: making rapid recovery essential.
