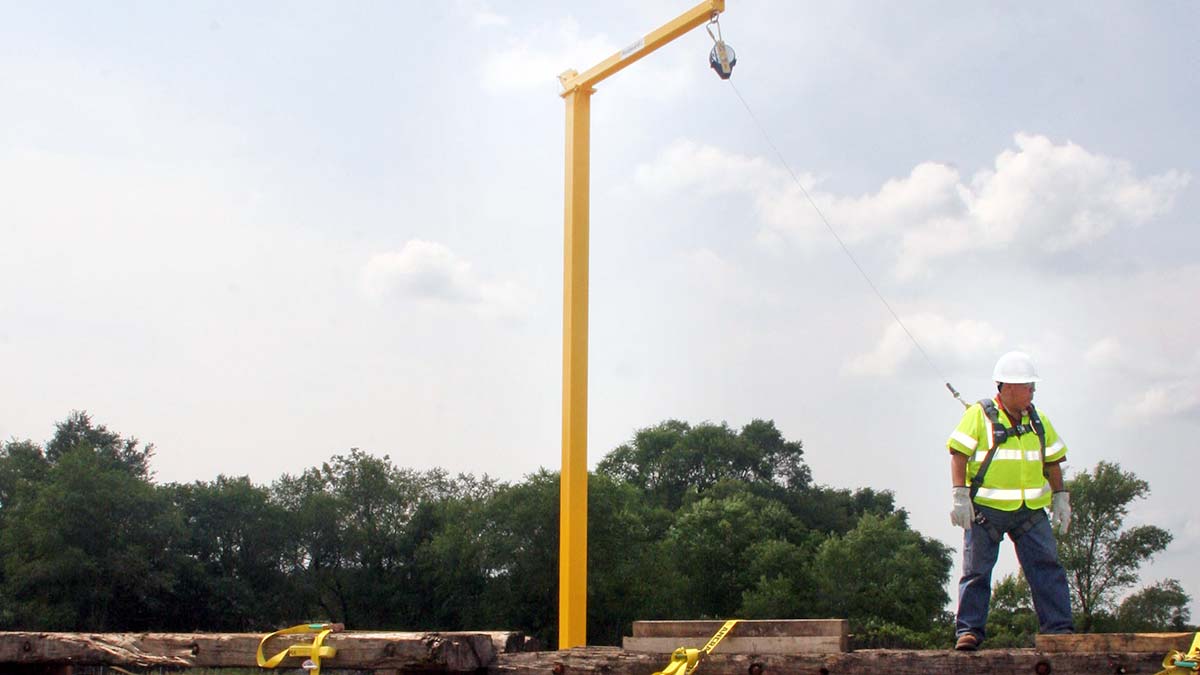

Freestanding Jib Fall Arrest System

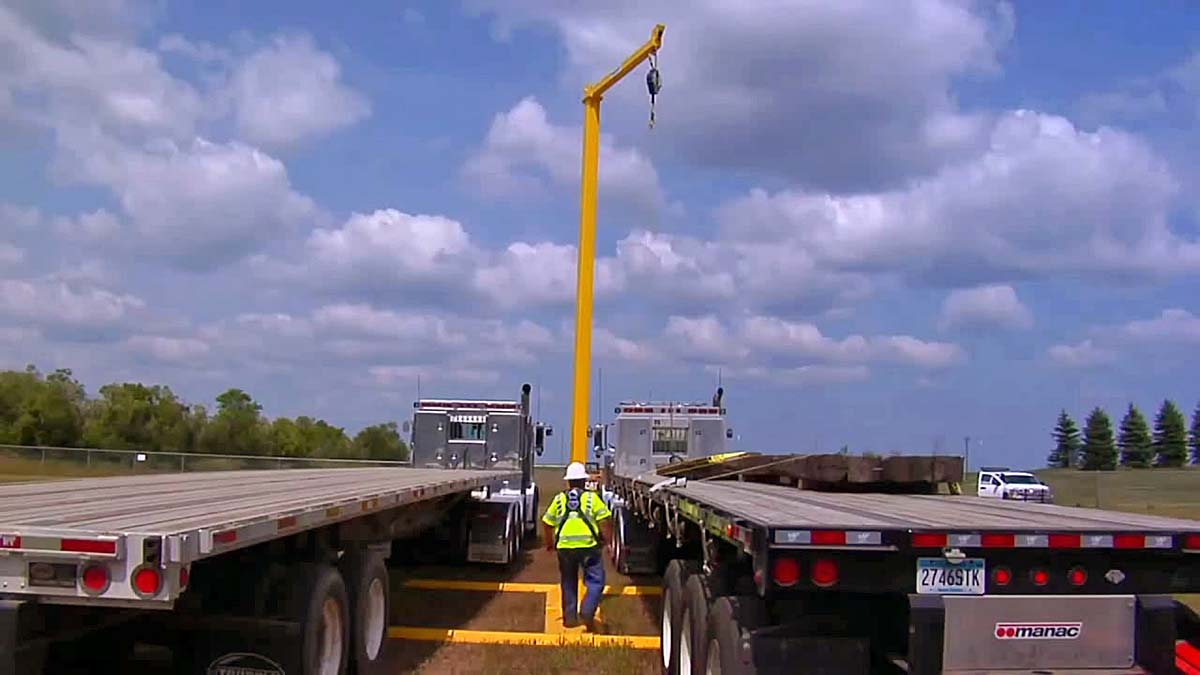

Maximize safety while maintaining portability. FLS Jibs are Fall Protection Systems designed for applications that require a large work area in a limited space. The smaller frame allows trucks to be parked side-by-side during use but does not require the weight of the vehicle as the anchoring force. The 360 degree rotational boom provides a 5 ft. (1.5 m) working offset, and has the capacity to provide fall protection or a rescue system for one person. Forklift pockets simplify moving the system around a job site. Depending on the type of base, these systems are ANSI, OSHA and CE compliant.

The FLS Jib System includes periscoping rotation handles for turning the system into working positions and an installed rail with trolley.

Mobile

Mobile

FLS Jib Systems are engineered for easy transport and mobility with optional trailer. Forklift pockets are strategically located on all four sides of the base to help ensure ease of mobility and
placement between job sites.

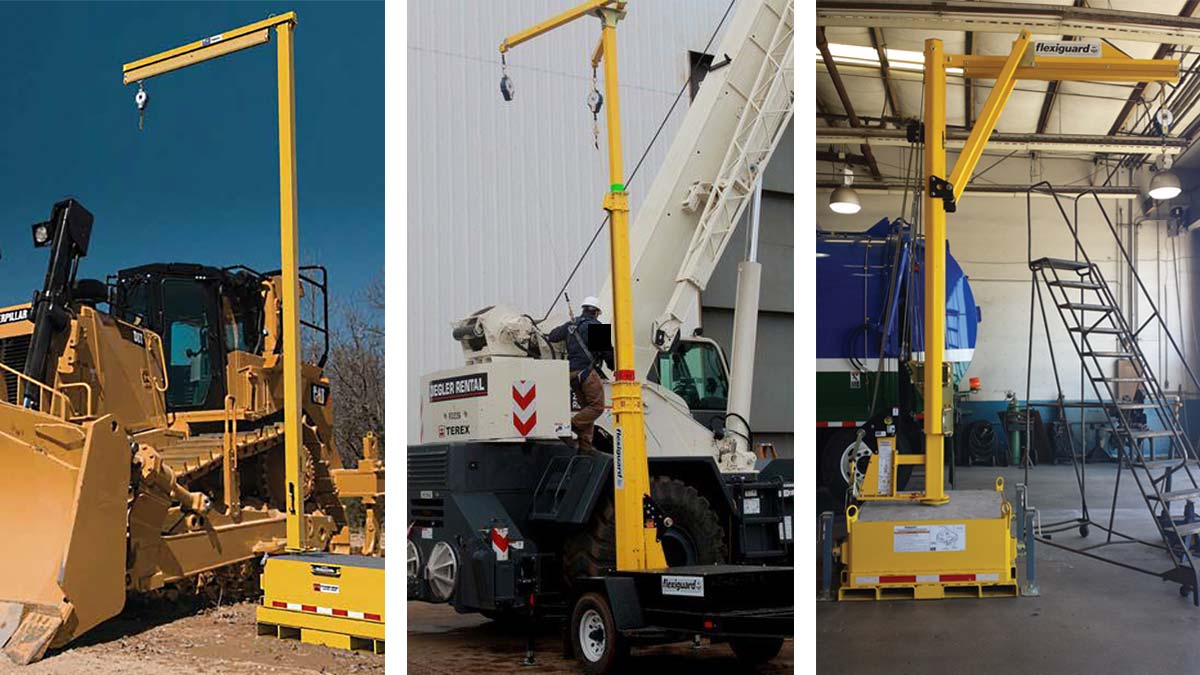

Versatile

Versatile

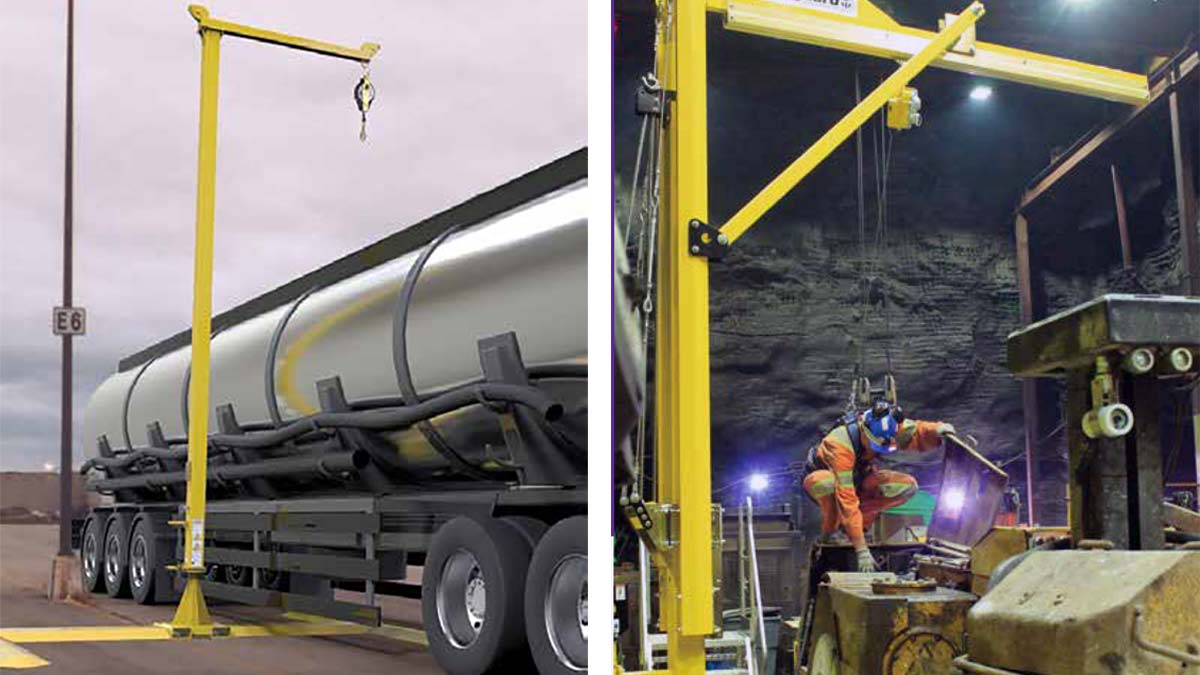

FLS Free-Standing Deadweight Anchor Systems can be utilized over a variety of equipment, vehicles and structures. Featuring a 360 degree rotating jib, this portable solution provides mobility and fall protection for one person.

Lightweight

Lightweight

This system features a lightweight design, allowing for easy mobility around the job site with a pallet jack or forklift.

Custom Designs

Custom Designs

FLS Jib systems are available in a wide variety of pre-engineered designs to meet any application requirement. Options include trolleys or anchor points, fixed or height variable solutions, and multiple base configurations including an outrigger base. If additional customization is needed, An FLS engineer will work with you to ensure your System is optimal for your work environment.

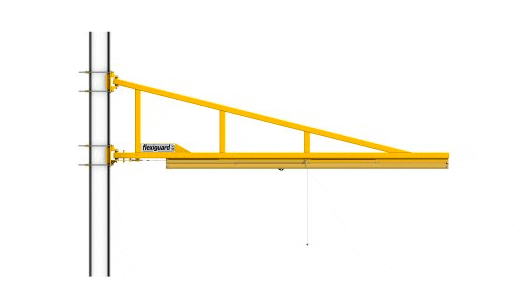

Fixed Height Boom

Part No.Anchor HeightOffsetUsers
198530433Determined by installation20 ft.1

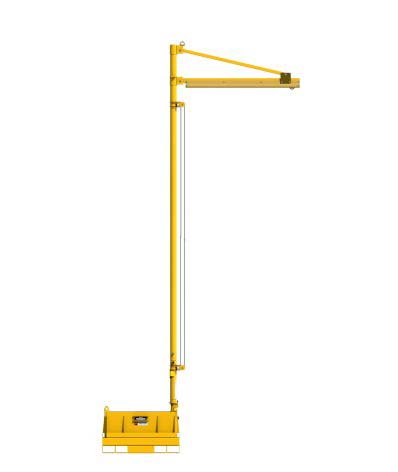

Fixed Height Counterweight Jibs Specifications

Part No.Anchor HeightOffsetConcreteUsers
19851775016.75 ft.8 ft.without1
19851775116.75 ft.8 ft.with1
19851775220.67 ft.8 ft.without1
19851775320.67 ft.8 ft.with1
19851775423.67 ft.8 ft.without1
19851775523.67 ft.8 ft.with1

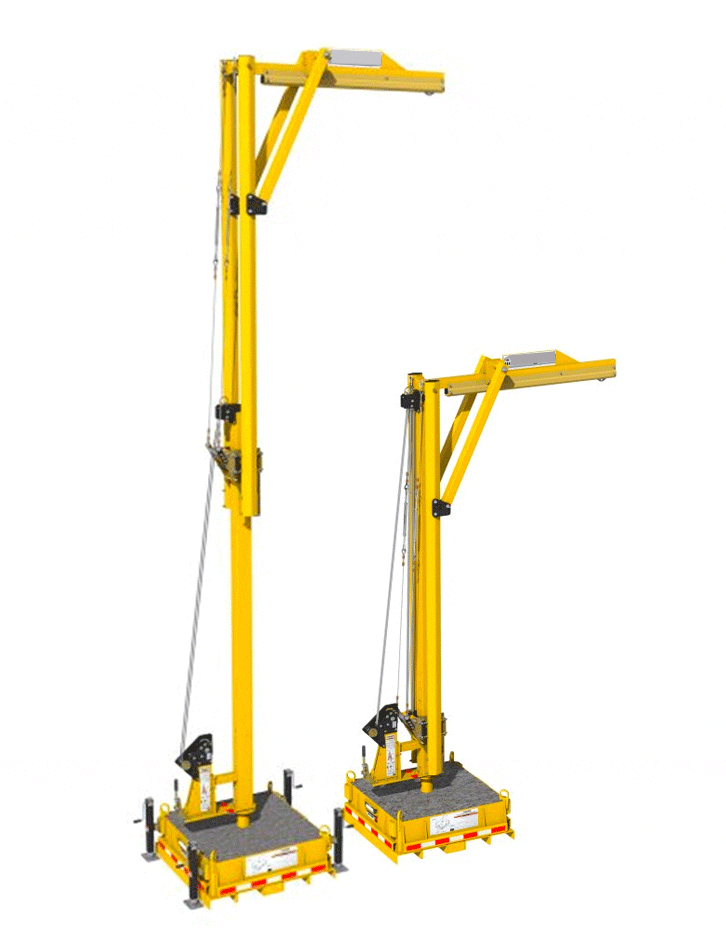

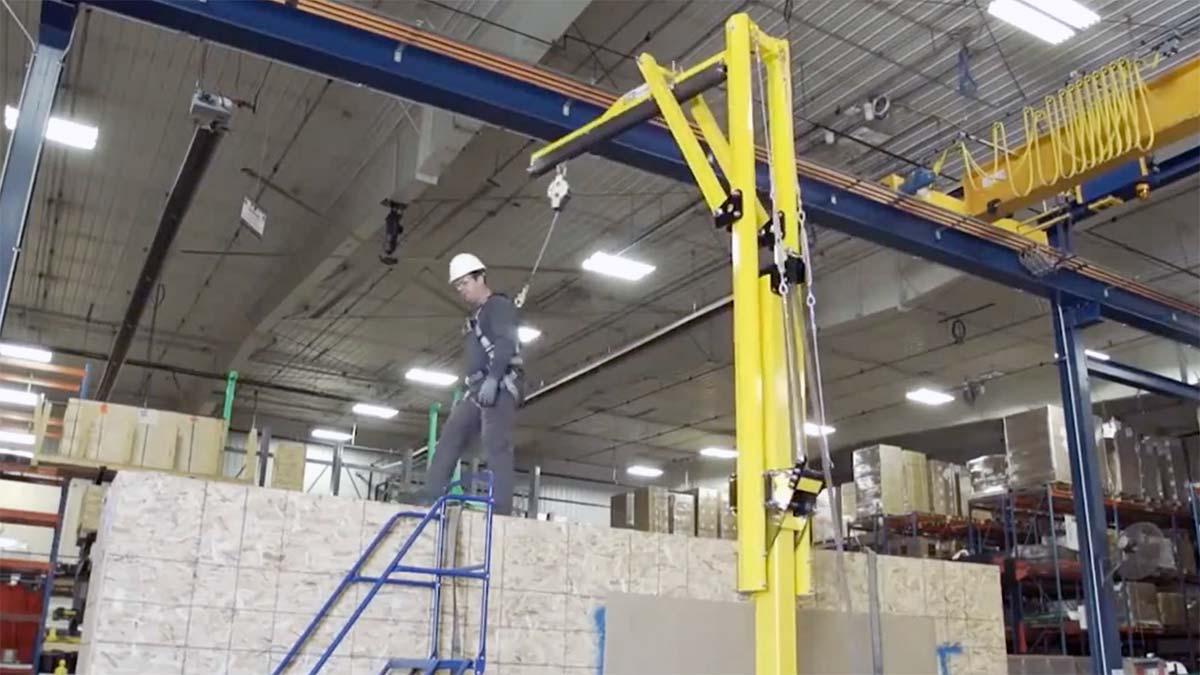

Engineered Modular Jib Specifications

Anchor Height
Part No.Anchor HeightOffsetConcreteUsers
19853056321 ft.7 ft.n/a1
19853055710 ft.-15 ft.7 ft.n/a1
19853055813 ft.-20 ft.7 ft.n/a1
19853055915 ft.-25 ft.7 ft.n/a1
19853053815 ft.-25 ft.7 ft.without2
Base Configurations
Part No.Base TypeConcrete
198530564Flush floor mountn/a
198530565Top floor mountn/a
1985305665000 lb. Counterweightwith
1985306215000 lb. Counterweightwithout
Accessories
Part No.AccessoryCompatible Systems
198530777Lifting eyes (4)198530566, 198530621
198530563Jack leveling kit198530566, 198530621

Anchor Point Jib Specifications

Anchor Point Jib with Outrigger Base
Part No.Anchor HeightOffsetPPEUsers
19853060720 ft.5 ft. 10 in.not included1
19853057920 ft.5 ft. 10 in.included1
Anchor Point Jib with Outrigger Base
Part No.Anchor HeightOffsetPPEUsersConcrete
19853060620 ft.5 ft. 9 in.not included1with
19853061920 ft.5 ft. 9 in.not included1without
19853059520 ft.5 ft. 9 in.included1with
19853062020 ft.5 ft. 9 in.included1without

OSHA REGULATIONS FOR PORTABLE SYSTEMS

This system meets ANSI Z359.6, OSHA 1926.502.

Anchorage strength requirements are dependent on each type of application. Below are anchorage strength requirements for specific applications:

  • Fall Arrest – The structure to which a personal fall arrest system is attached must sustain static loads applied in the directions permitted by the fall arrest system of at least: 5,000 lbs for non-certified anchorages, or two times the maximum arresting force for certified anchorages (designed by qualified person). ANSI Z359.2: When more than one personal fall arrest system is attached to an anchorage, the strengths stated above must be multiplied by the number of personal fall arrest systems attached to the anchorage. OSHA 1926.500 and OSHA 1910.140: Anchorages used for attachment of a personal fall arrest system must be independent of any anchorage being used to support or suspend platforms, and must support at least 5,000 lbs per user attached; or be designed, installed, and used as part of a complete personal fall arrest system that maintains a safety factor of at least two, and that is supervised by a qualified person.
  • Restraint/Travel Restraint – The structure to which a restraint system is attached must sustain static loads applied in the directions permitted by the restraint system of at least 1,000 lbs for non-certified anchorages, or two times the foreseeable force for certified anchorages. ANSI Z359.2: When more than one restraint system is attached to an anchorage, the strengths stated above must be multiplied by the number of restraint systems attached to the anchorage.
  • Positioning/Work Positioning – The structure to which a work positioning system is attached must sustain static loads applied in the directions permitted by the work positioning system of at least 3,000 lbs, or twice the potentialimpact load, whichever is greater. See OSHA 1926.502. ANSI Z359.2: 3,000 lbs for non-certified anchorages or two times the foreseeable force for certified anchorages. When more than one work positioning system is attached to an anchorage, the strengths stated above must be multiplied by the number of work positioning systems attached to the anchorage.
  • Rescue – The structure to which a rescue system is attached must sustain static loads applied in the directions permitted by the rescue system of at least 3,000 lbs for non-certified anchorages, or five times the applied load for certified anchorages. When more than one rescue system is attached to an anchorage, the strengths stated above must be multiplied by the number of rescue systems attached to the anchorage (re: ANSI Z359.2).
