Portable Overhead Anchor Points

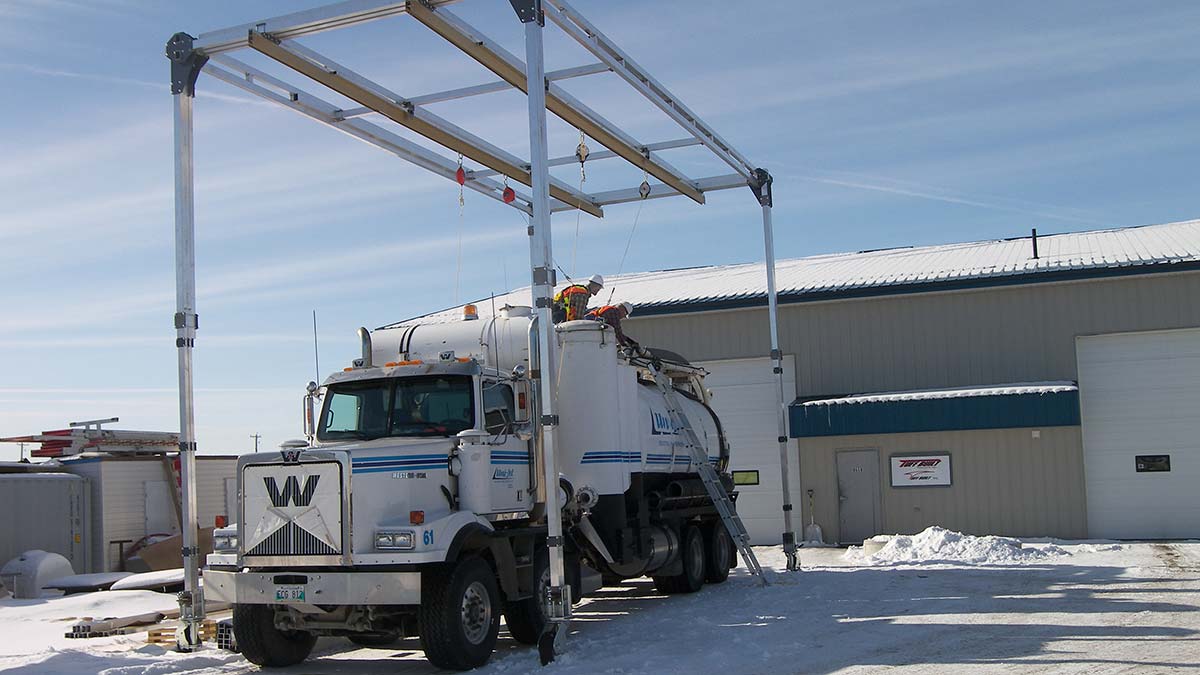

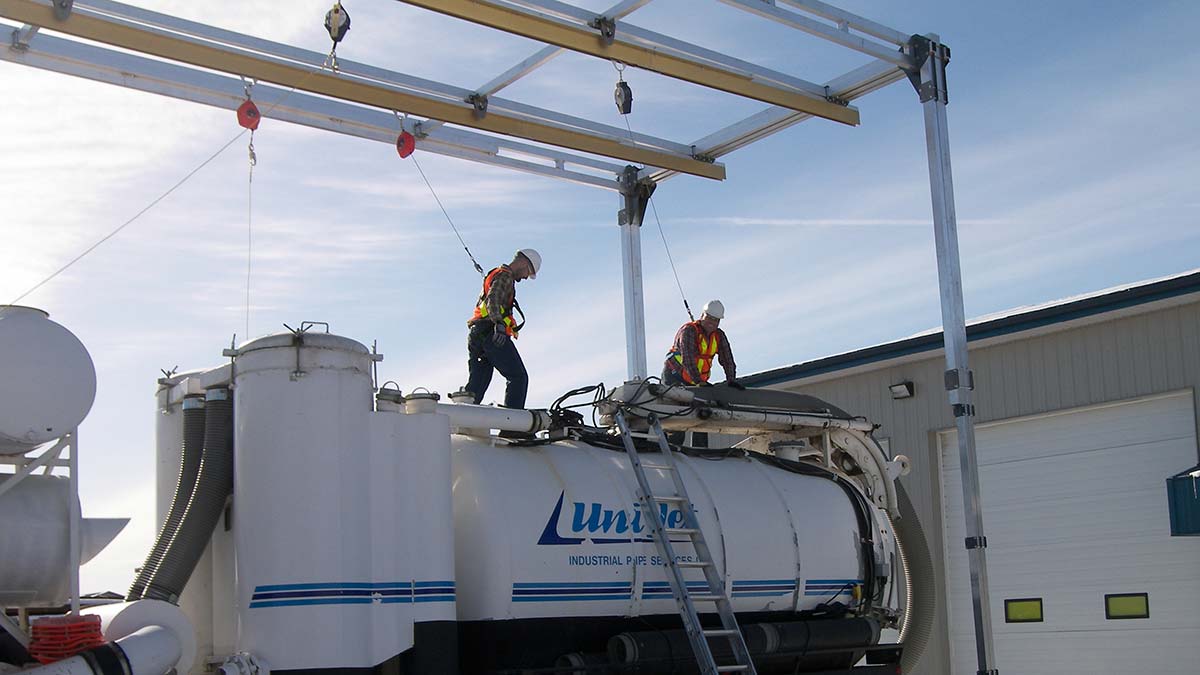

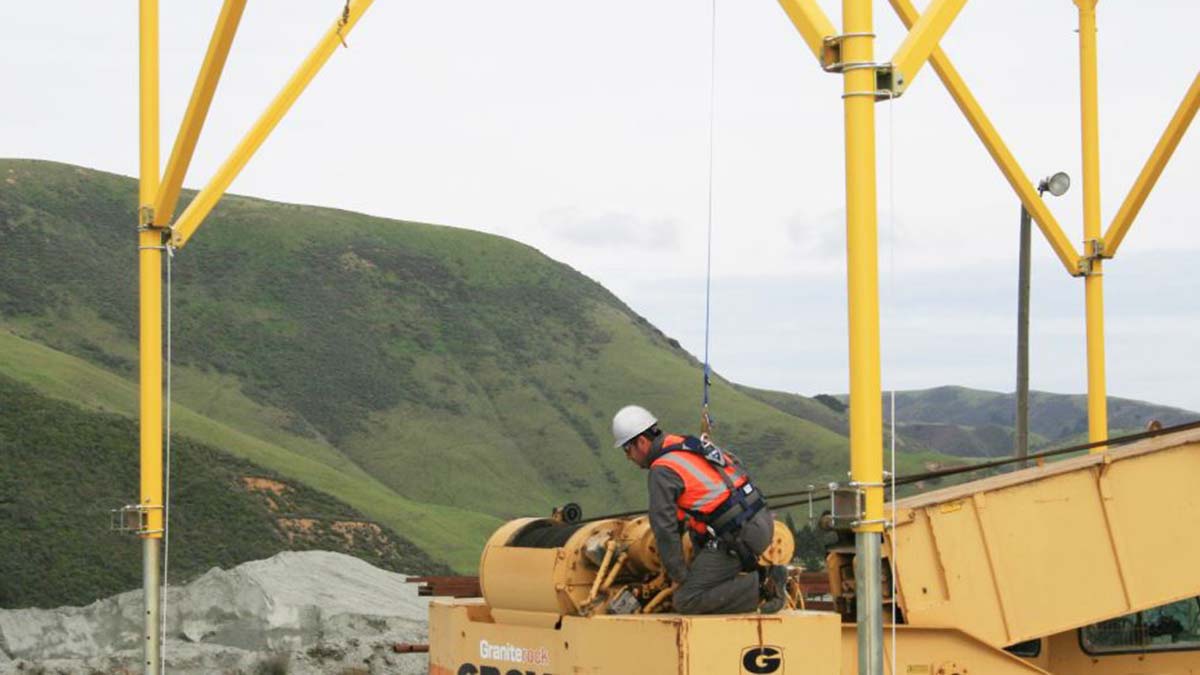

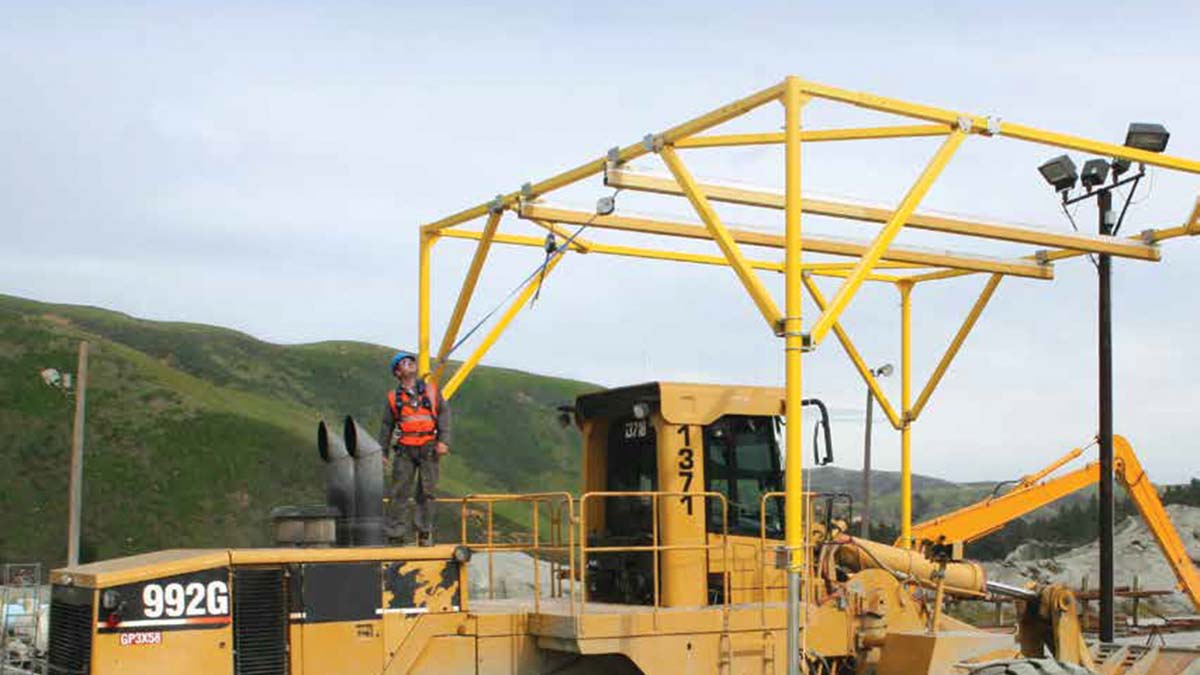

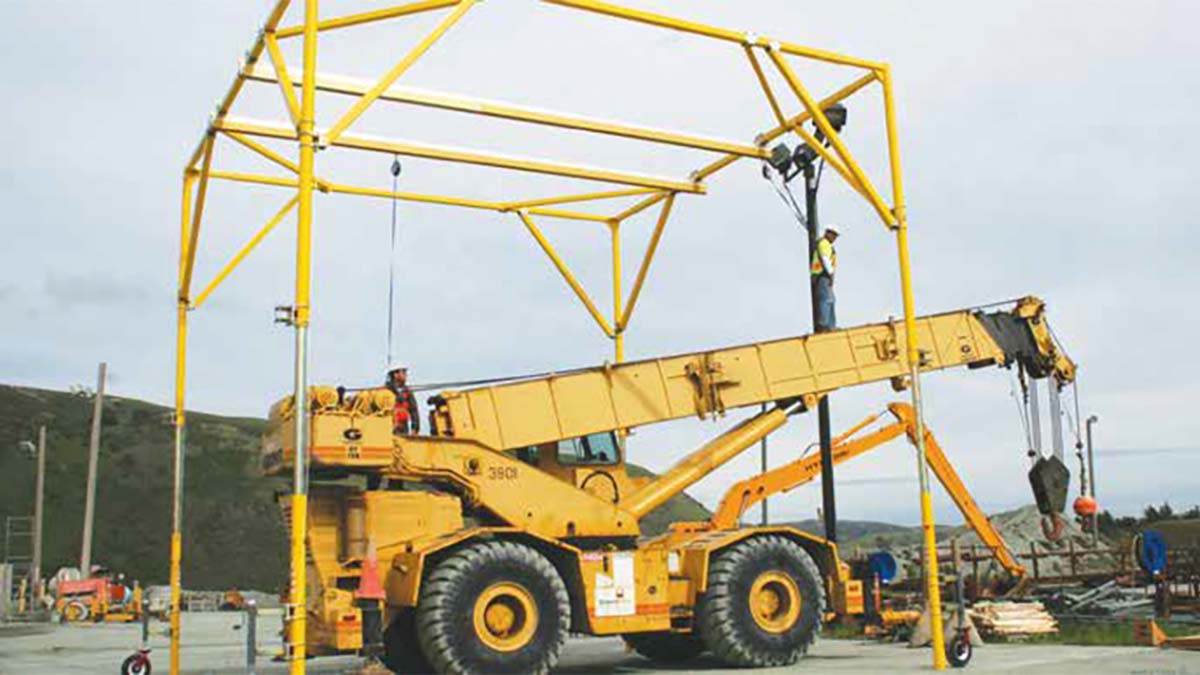

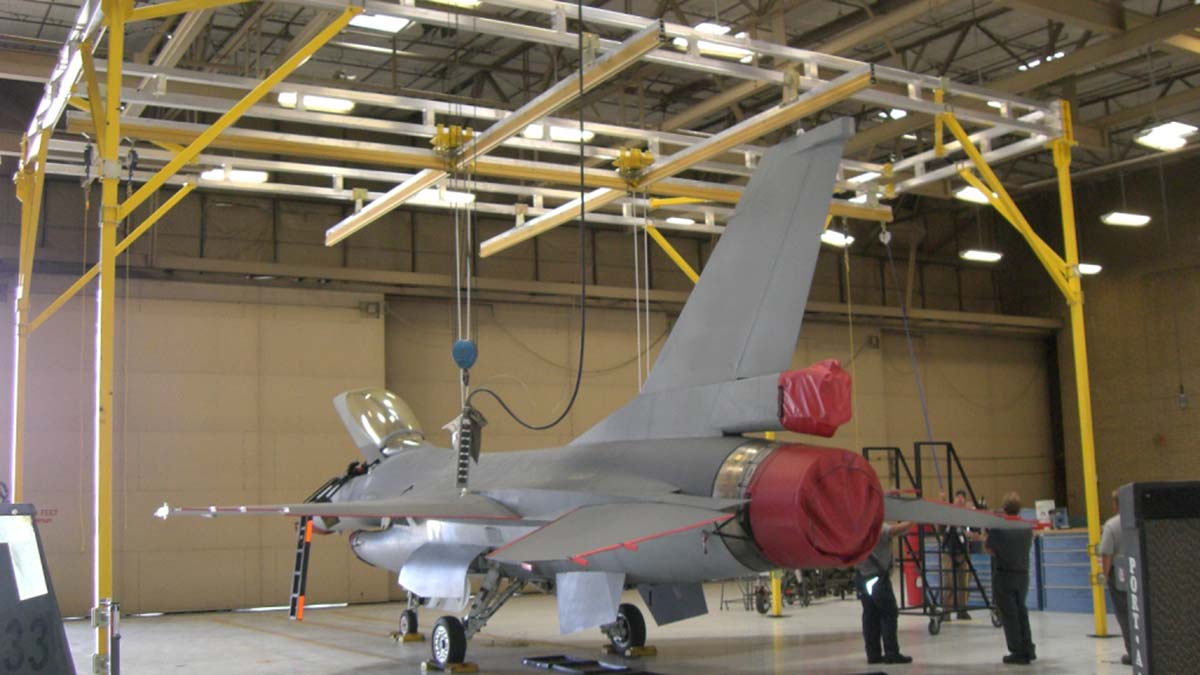

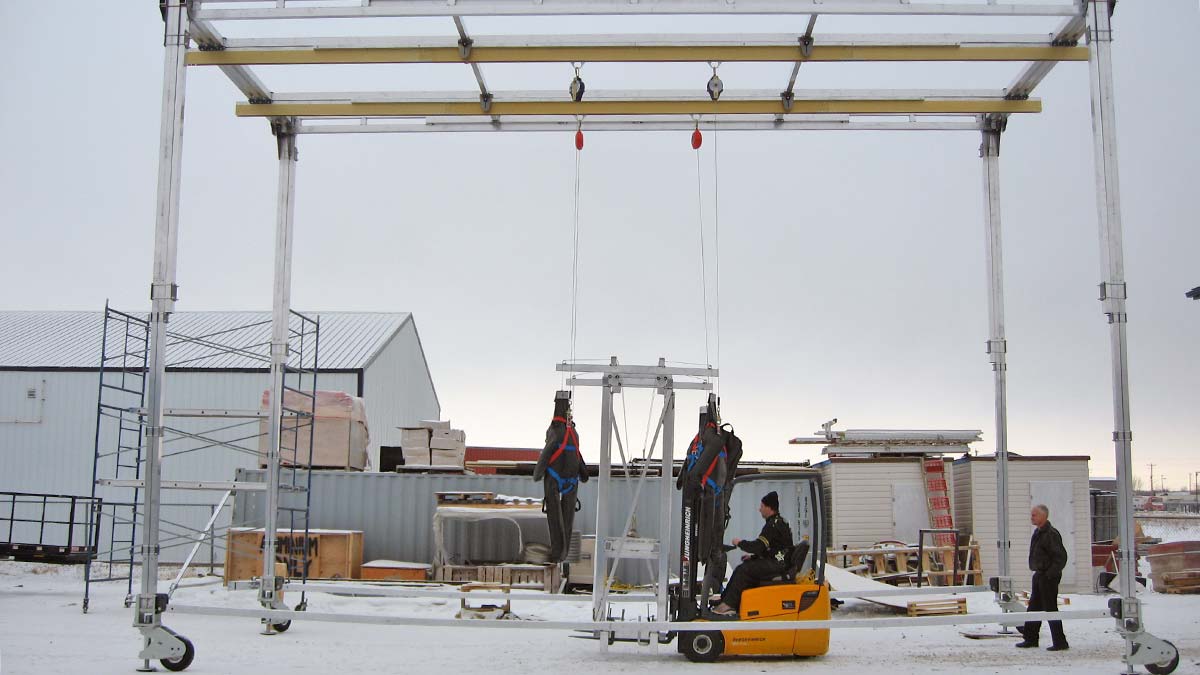

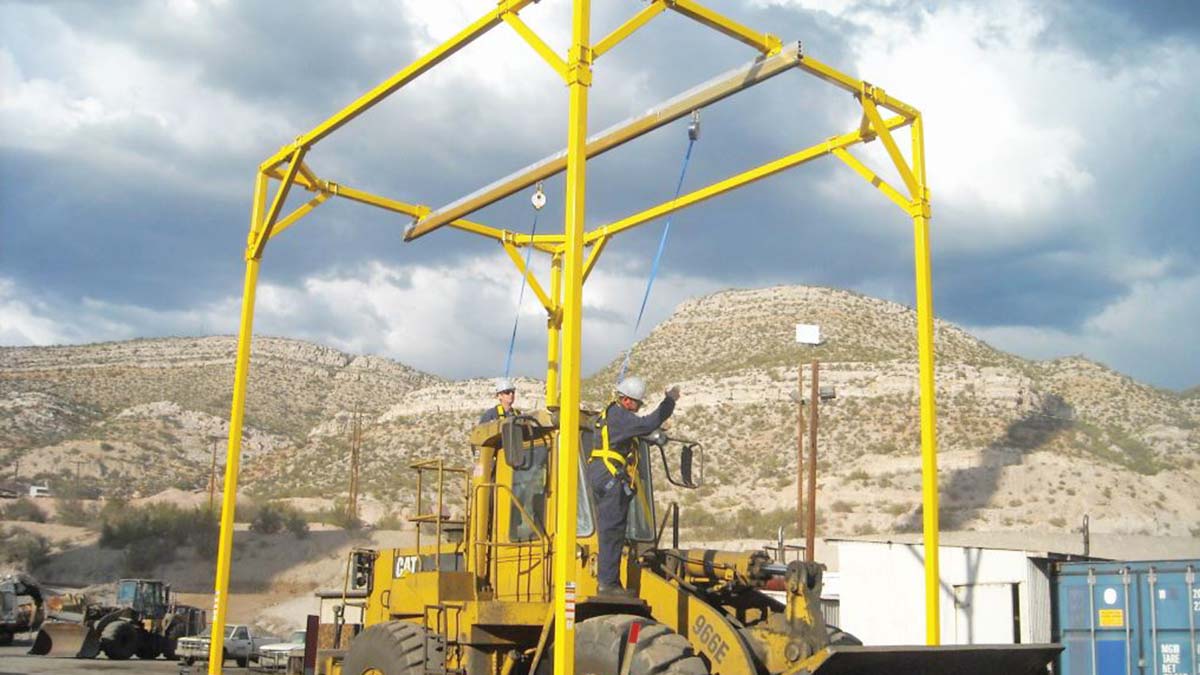

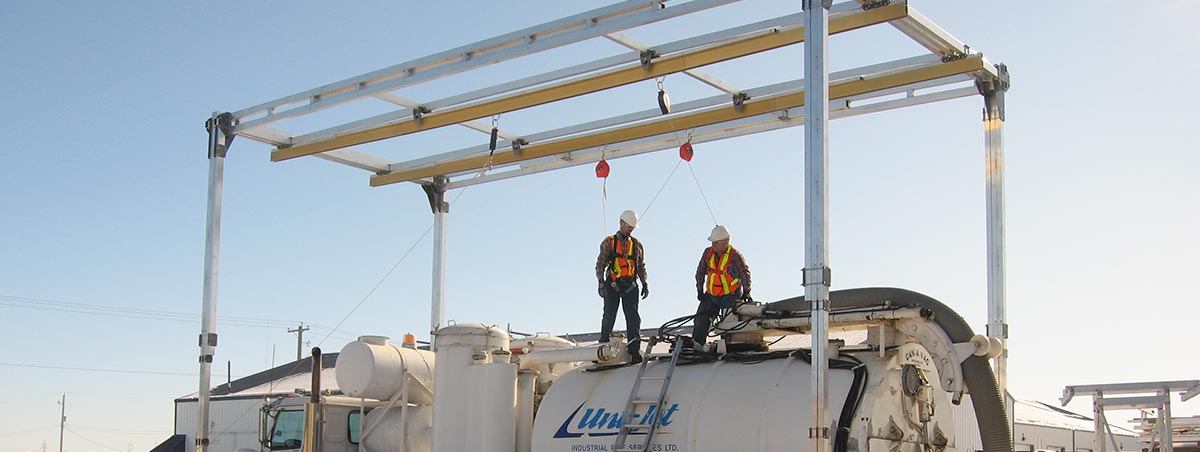

The Mobile Quad Rail System (MQRS) allows you to place mobile overhead anchor points where you need them in your workplace. These systems roll over equipment or other structures being accessed, and provide ground-up fall protection for your elevated work activities. The built-in horizontal rail affords the simplicity of a rail and trolley system while allowing users a full range of motion over the work area, keeping your workers safe without interfering with their jobs.

Mobile

Our Quad Rail Systems are built to accommodate a specific area or piece of equipment and can be designed as portable frames, allowing for easy relocation.

Versatile

Quad Rail Systems Systems are rated for indoor and outdoor use, and can be outfitted for any enviroment, application or terrain providing reliable fall protection for even the most unique work environments.

Multi-User

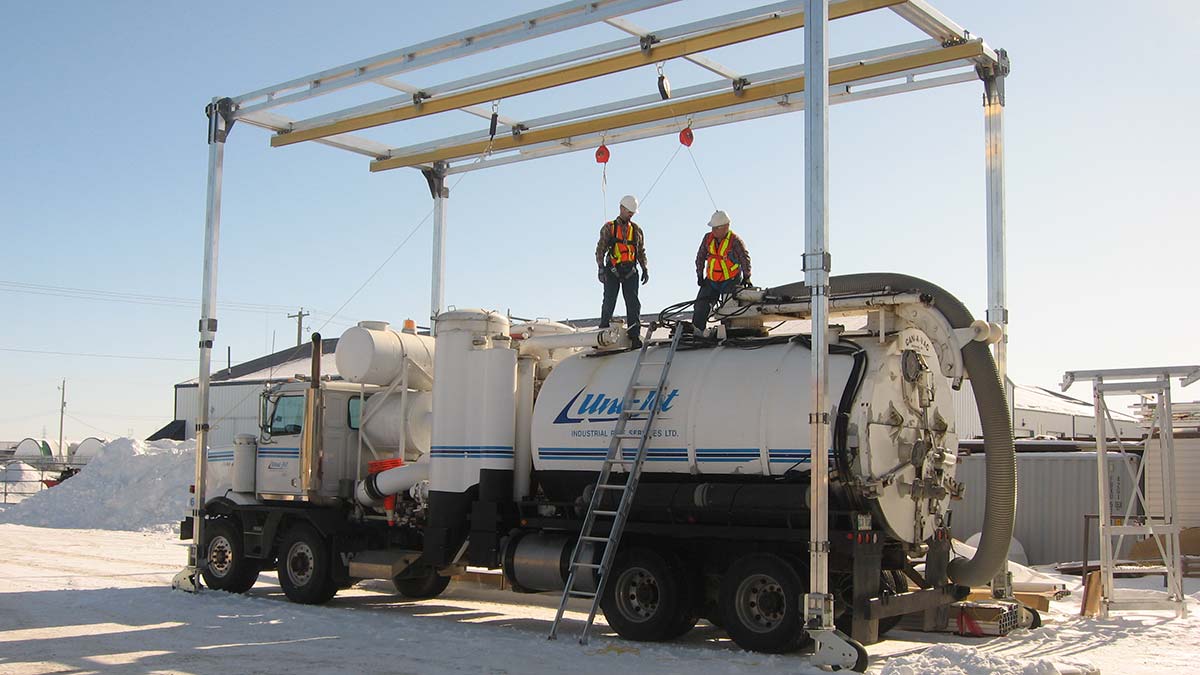

Quad Rail can have two rails each rated for a single user allowing 2 people to have access to the entire work area while while being protected against falls at height.

Custom Designs

The Mobile Access Quad Rail System can be ordered to meet your applications’ custom requirements. An FLS engineer will work with you to ensure that your Quad Rail System is optimal for your work environment.

Durable

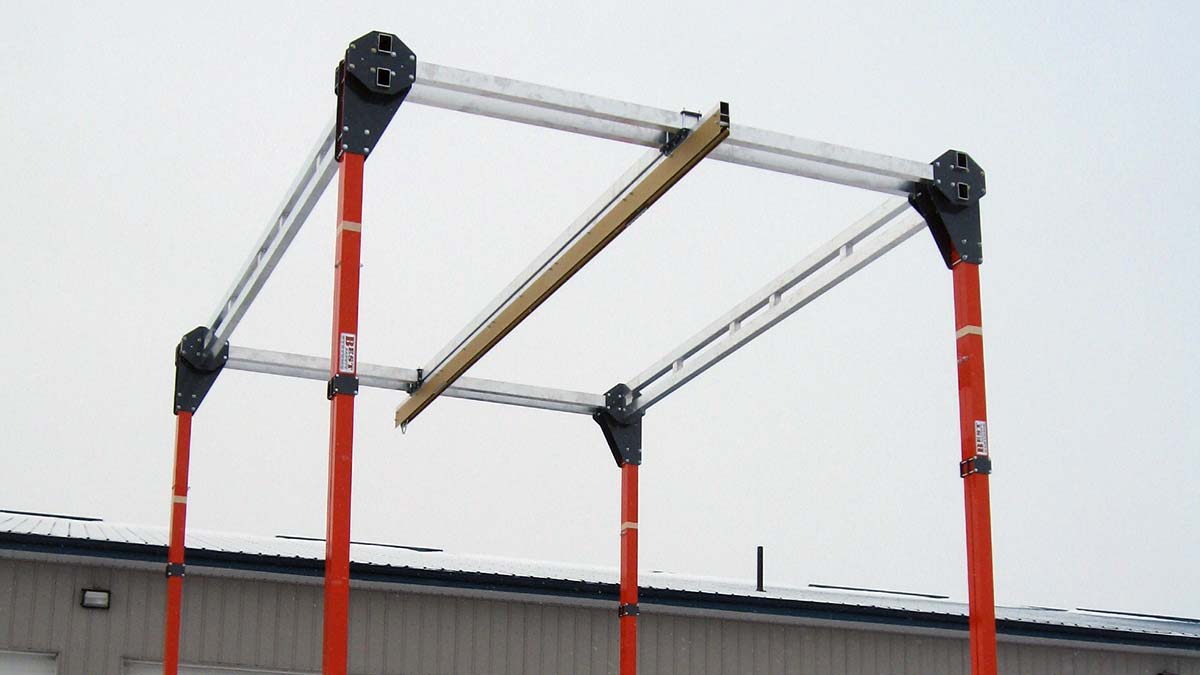

Systems are constructed from powder-coated, anodized high strength alloy specifically engineered for extra tall and wide applications. The enclosed rail keeps debris from weather elements out. All FLS systems are extremely durable and built to last with world class quality, materials and workmanship.

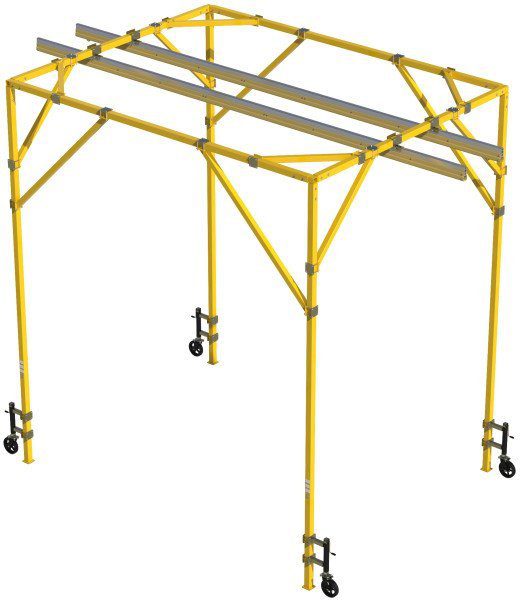

Mobile Quad Rail Specifications - Style 1

Fixed Height Systems
Part No.Anchor HeightWidthRail LengthRailsWheels
19853034514 ft.14 ft.15.5 ft.216 in. Pneumatic
19853036121 ft.15 ft.28 ft.112 in. Rubber
19853042730 ft.14 ft.32 ft.216 in. Pneumatic
Adjustable Height Systems
Part No.Anchor HeightWidthRail LengthRailsWheels
19853028812 ft.-18 ft.12 ft.20 ft.112 in. Rubber

Mobile Quad Rail Specifications - Style 2

Fixed Height Systems
Part No.Anchor HeightWidthRail LengthRailsWheels
427014018'-4"12'-0"16'-0"2Pneumatic
427014118'-4"12'-0"16'-0"1Urethane
427014215'-10"12'-0"16'-0"1Urethane
427014321'-8"14'-4"34'-4"2Pneumatic

Quad Rail System Projects

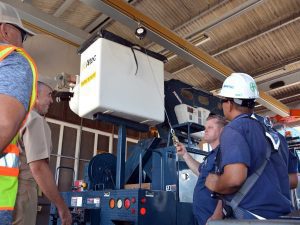

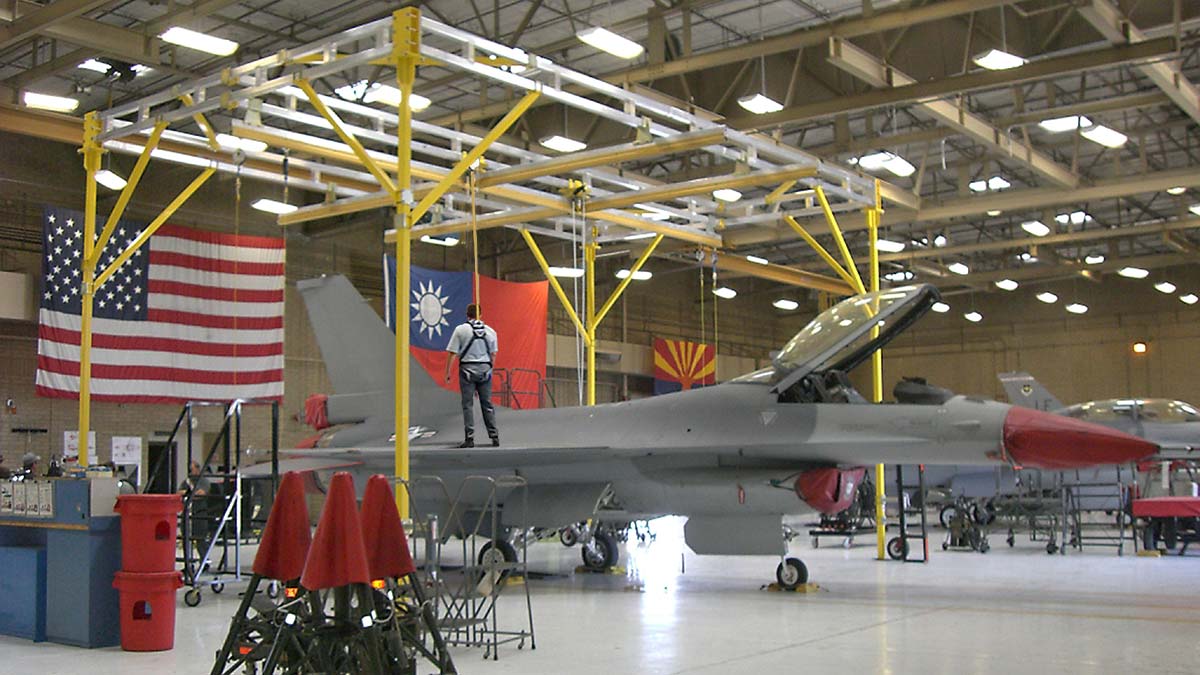

Naval Facility Implements Mobile Quad Rail

The Flexible Lifeline Systems (FLS) Mobile Fall Arrest System was quick to install, can be reconfigured as needed, and very reasonable when compared to installing a permanent fall arrest system that could only be used in one location.

OSHA REGULATIONS FOR MOBILE QUAD RAIL SYSTEMS

This system complies with ANSI/ASSE Z359.1 Safety Requirements for Personal Fall Arrest Systems, Subsystems and Components, ANSI/ASSE Z359.15 Safety Requirements for Single Anchor Lifelines and Fall Arresters for Personal Fall Arrest and Rescue Systems and OSHA 1910.140(d), requirements for Personal Fall Arrest Systems performance criteria.

OSHA 1910.140(d) states…the employer must ensure that personal fall arrest systems:

  • 1910.140(d)(1)(i) – Limit the maximum arresting force on the employee to 1,800 pounds (8 kN);
  • 1910.140(d)(1)(ii) – Bring the employee to a complete stop and limit the maximum deceleration distance the employee travels to 3.5 feet (1.1 m);
  • 1910.140(d)(1)(iii) – Have sufficient strength to withstand twice the potential impact energy of the employee free falling a distance of 6 feet (1.8 m), or the free fall distance permitted by the system; and
  • 1910.140(d)(1)(iv) – Sustain the employee within the system/strap configuration without making contact with the employee’s neck and chin area.
  • 1910.140(d)(1)(v) – If the personal fall arrest system meets the criteria and protocols in appendix D of this subpart, and is being used by an employee having a combined body and tool weight of less than 310 pounds (140 kg), the system is considered to be in compliance with the provisions of paragraphs (d)(1)(i) through (iii) of this section. If the system is used by an employee having a combined body and tool weight of 310 pounds (140kg) or more and the employer has appropriately modified the criteria and protocols in appendix D, then the system will be deemed to be in compliance with the requirements of paragraphs (d)(1)(i) through (iii).

This system also complies with OSHA 1910.66(f)(5) requirements for Single point suspended working platforms.

Flexible Lifeline Systems offers its customers user training as a last step in the installation of every active fall protection system we install. When required Flexible Lifeline Systems also provides access to our fall protection specialists to support customers in their effort to develop suitable programs to assist them in their obligations to provide a safe and compliant fall protection plan for their employees. However, it is the employer’s responsibility to meet the requirements of sections 1910.66(i)(1)(iv) and 1910.66(i)(1)(v).

  • 1910.66(i)(1)(iv) – Written work procedures for the operation, safe use and inspection of working platforms shall be provided for employee training. Pictorial methods of instruction, may be used, in lieu of written work procedures, if employee communication is improved using this method. The operating manuals supplied by manufacturers for platform system components can serve as the basis for these procedures.

1910.66(i)(1)(v) – The employer shall certify that employees have been trained in operating and inspecting a working platform by preparing a certification record which includes the identity of the person trained, the signature of the employer or the person who conducted the training and the date that training was completed. The certification record shall be prepared at the completion of the training required in paragraph (i)(1)(ii) of this section, and shall be maintained in a file for the duration of the employee’s employment. The certification record shall be kept readily available for review by the Assistant Secretary of Labor or the Assistant Secretary’s representative.
