A-Frame Horizontal Rail Fall Protection

OSHA compliant anchor points on a portable structure giving workers safe and reliable coverage and protection where they need it.

Talk to an ExpertTalk to an Expert

Or, give us a call: 1-800-353-9425

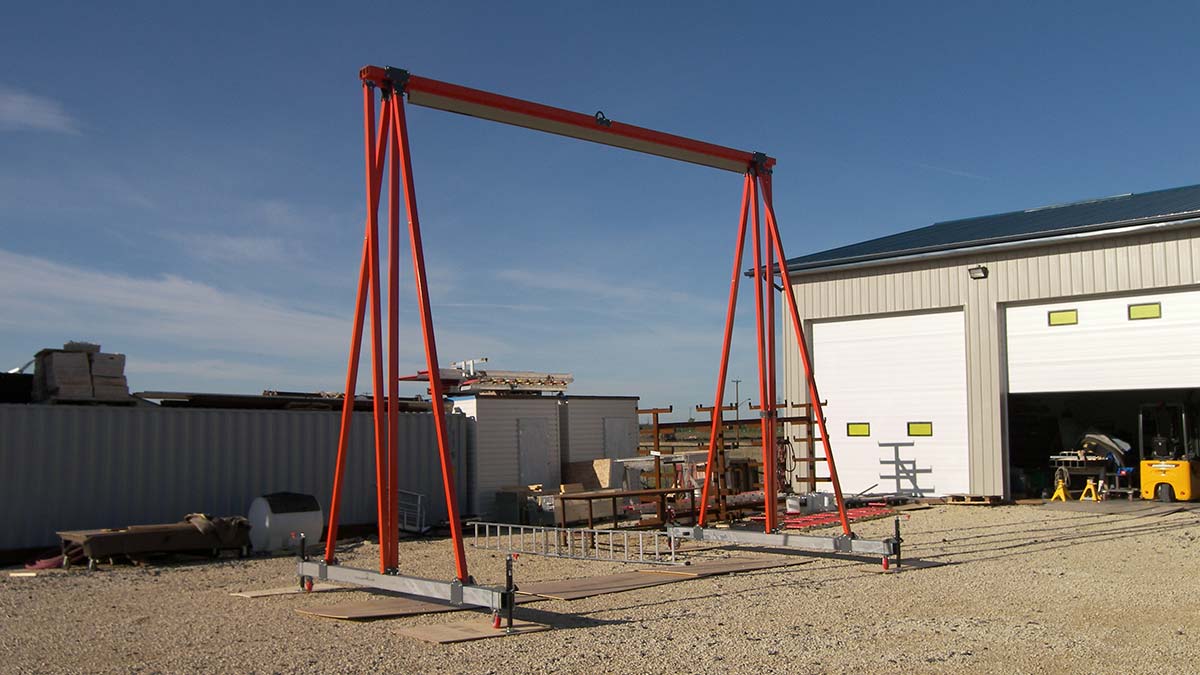

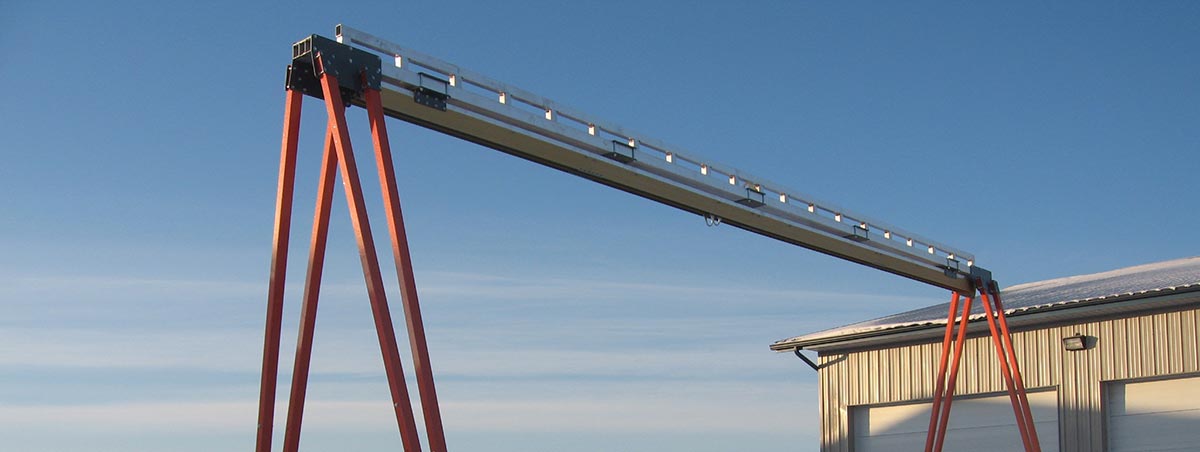

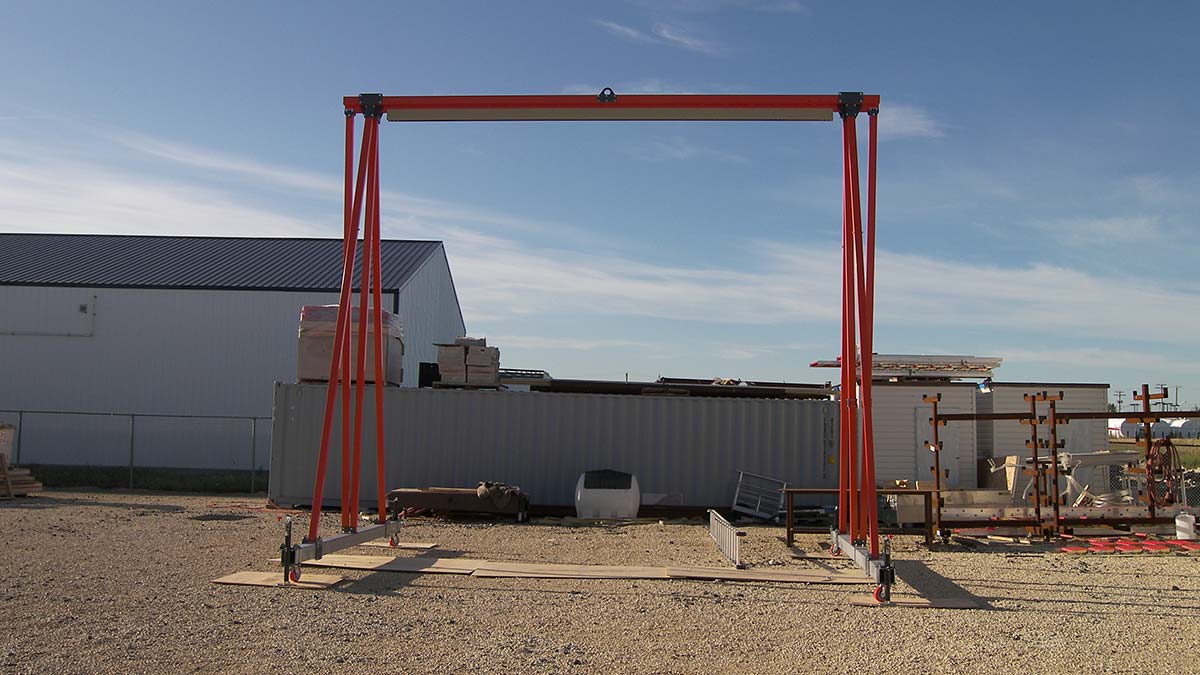

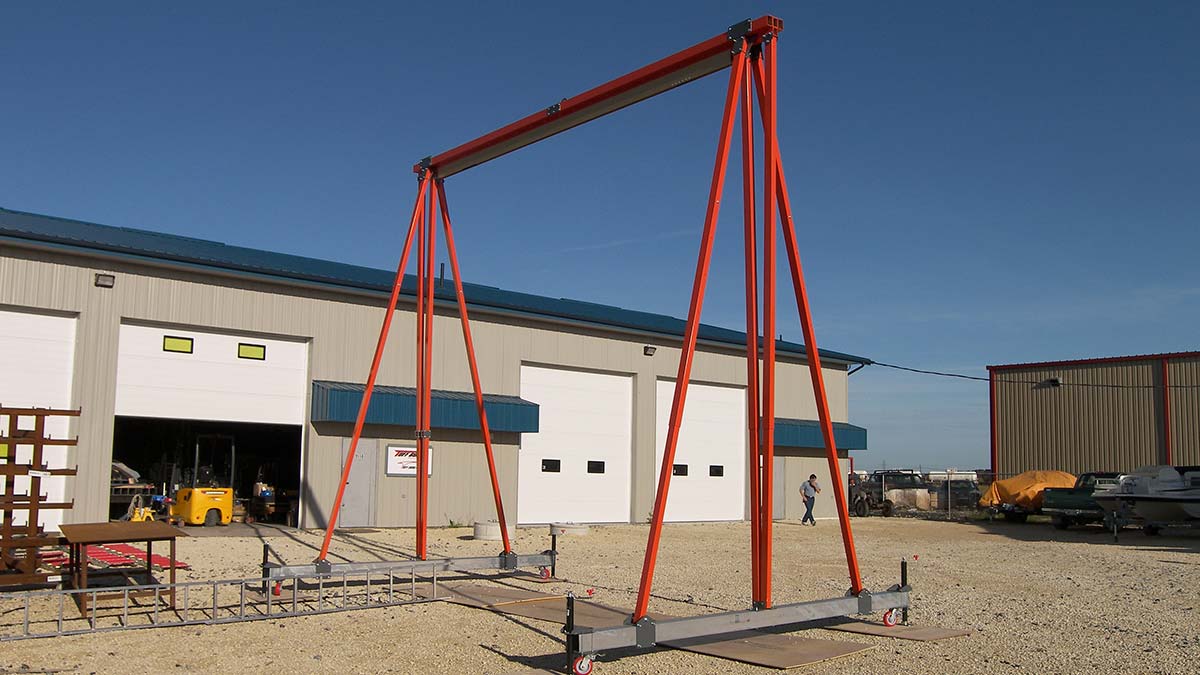

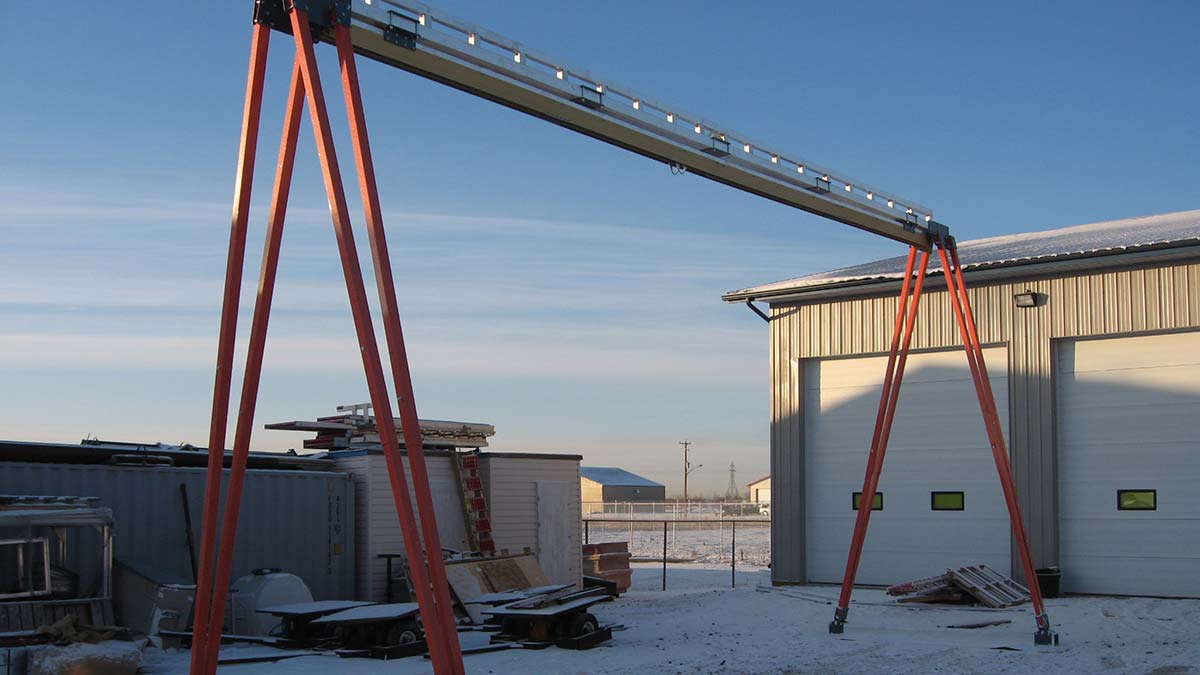

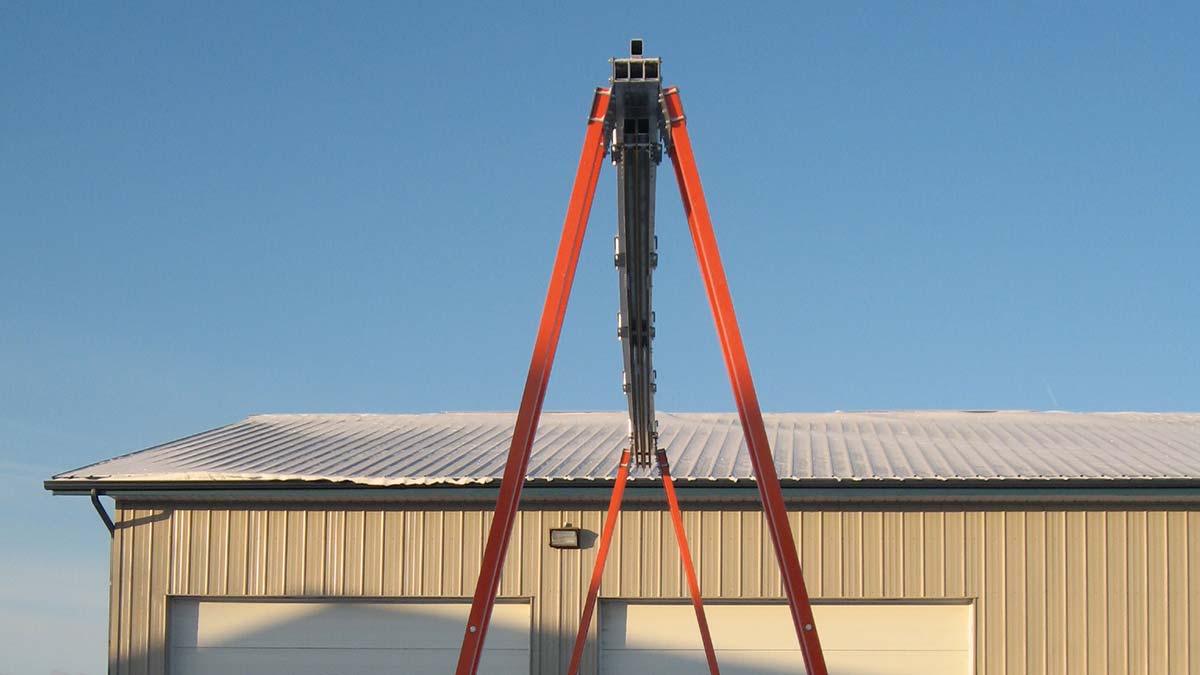

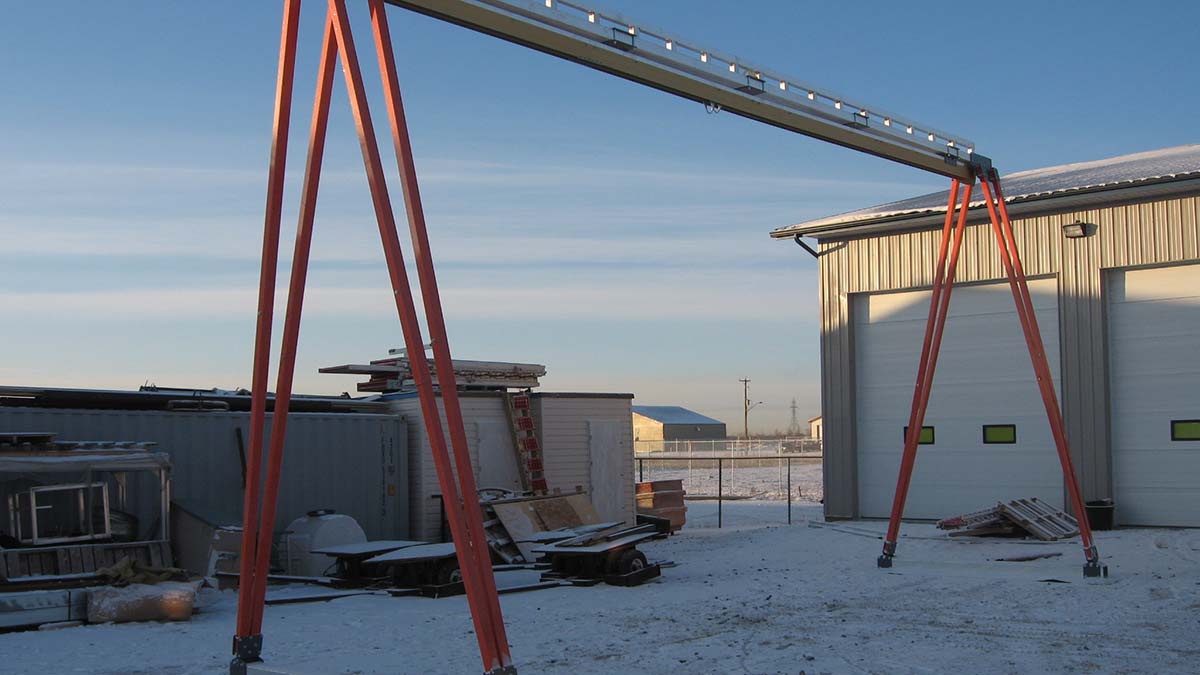

Freestanding A-Frame Horizontal Rail Fall Protection Systems

The Mobile A-Frame System (MAFS) allows you to place mobile overhead anchor points where you need them in your workplace. These systems roll over equipment or other structures being accessed and provide ground-up fall protection for your elevated work activities. The built-in horizontal rail affords the simplicity of a rail and trolley system while allowing users a full range of motion over the work area, keeping your workers safe without interfering with their jobs.

Mobile

Mobile

The A-Frame is designed to be moved manually or with the use of a tow bar and service vehicle. The system can be easily transported to locations where overhead fall protection is needed and not otherwise available.

Versatile

Versatile

A-Frame horizontal rail systems are rated for indoor and outdoor use, and can be outfitted for any enviroment, application or terrain providing reliable fall protection for even the most unique work environments.

Lightweight

Lightweight

Aluminum Construction makes the A-Frame lightweight and easy to move into position by hand.

Multi-User

Multi-User

The A-Frame rail features two man-rated trolleys for anchorage of a Personal Fall Arrest System (PFAS). Both users have access to the entire work area while while being protected against falls at height.

Custom Design

Custom Design

Available in a range of heights and wheel
styles. the Mobile A-Frame System is available in a variety of pre engineered systems or can be ordered to meet your applications’ custom requirements.

Durable

Durable

Systems are constructed from powder-coated, anodized high strength alloy specifically engineered for extra tall and wide applications. The enclosed rail keeps debris from weather elements out. All FLS systems are extremely durable and built to last with world class quality, materials and workmanship.

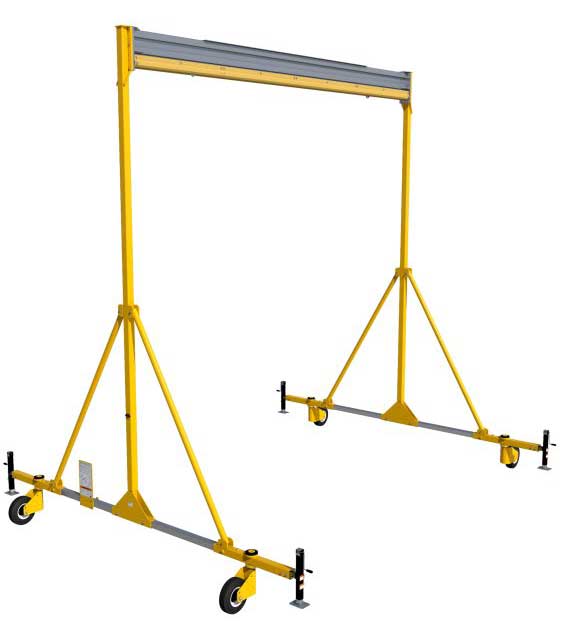

A-Frame Specifications - Style 1

Fixed Height Systems

Part No.Anchor HeightRail WidthWheels
19851779015 ft.15 ft.16 in. Caster
19851779115 ft.20 ft.16 in. Caster
19851779215 ft.30 ft.16 in. Caster
19851779320 ft.15 ft.16 in. Caster
19851779420 ft.20 ft.16 in. Caster
19851779520 ft.30 ft.16 in. Caster
19851779630 ft.15 ft.16 in. Caster
19851779730 ft.20 ft.16 in. Caster
19851779830 ft.30 ft.16 in. Caster

Adjustable Height Systems

Part No.Anchor HeightRail WidthWheels
19851778016 ft.-22.5 ft.20 ft.16 in. Pneumatic
19851778116 ft.-22.5 ft.30 ft.16 in. Pneumatic

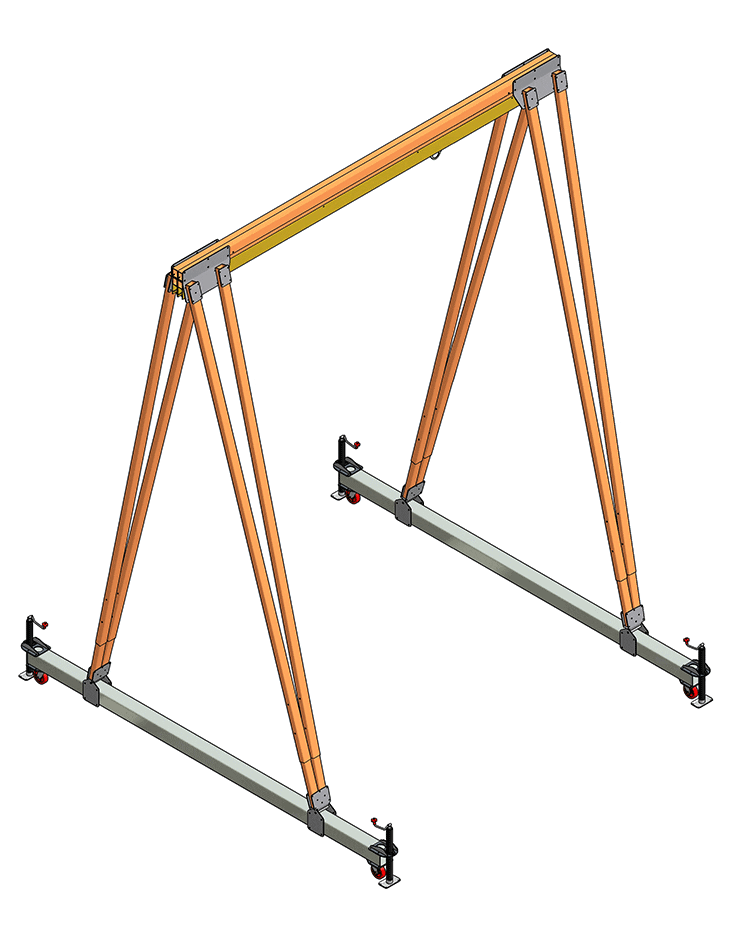

A-Frame Specifications - Style 2

Fixed Height Systems

Part No.Anchor HeightRail WidthSystem LengthWheels
427001023'-7"19'-2"13'-11"Urethane
427001120'-7"12'-0"14'-0"Urethane
427002432'-0"34'-8"20'-0"Pneumatic
427003722'-0"33'-6"14'-0"Urethane

PORTABLE FALL SAFETY SOLUTIONS

OSHA REGULATIONS FOR MOBILE A-FRAME SYSTEMS

This system complies with ANSI/ASSE Z359.1 Safety Requirements for Personal Fall Arrest Systems, Subsystems and Components, ANSI/ASSE Z359.15 Safety Requirements for Single Anchor Lifelines and Fall Arresters for Personal Fall Arrest and Rescue Systems and OSHA 1910.140(d), requirements for Personal Fall Arrest Systems performance criteria.

OSHA 1910.140(d) states…the employer must ensure that personal fall arrest systems:

  • 1910.140(d)(1)(i) – Limit the maximum arresting force on the employee to 1,800 pounds (8 kN);
  • 1910.140(d)(1)(ii) – Bring the employee to a complete stop and limit the maximum deceleration distance the employee travels to 3.5 feet (1.1 m);
  • 1910.140(d)(1)(iii) – Have sufficient strength to withstand twice the potential impact energy of the employee free falling a distance of 6 feet (1.8 m), or the free fall distance permitted by the system; and
  • 1910.140(d)(1)(iv) – Sustain the employee within the system/strap configuration without making contact with the employee’s neck and chin area.
  • 1910.140(d)(1)(v) – If the personal fall arrest system meets the criteria and protocols in appendix D of this subpart, and is being used by an employee having a combined body and tool weight of less than 310 pounds (140 kg), the system is considered to be in compliance with the provisions of paragraphs (d)(1)(i) through (iii) of this section. If the system is used by an employee having a combined body and tool weight of 310 pounds (140kg) or more and the employer has appropriately modified the criteria and protocols in appendix D, then the system will be deemed to be in compliance with the requirements of paragraphs (d)(1)(i) through (iii).

This system also complies with OSHA 1910.66(f)(5) requirements for Single point suspended working platforms.

Flexible Lifeline Systems offers its customers user training as a last step in the installation of every active fall protection system we install. When required Flexible Lifeline Systems also provides access to our fall protection specialists to support customers in their effort to develop suitable programs to assist them in their obligations to provide a safe and compliant fall protection plan for their employees. However, it is the employer’s responsibility to meet the requirements of sections 1910.66(i)(1)(iv) and 1910.66(i)(1)(v).

  • 1910.66(i)(1)(iv) – Written work procedures for the operation, safe use and inspection of working platforms shall be provided for employee training. Pictorial methods of instruction, may be used, in lieu of written work procedures, if employee communication is improved using this method. The operating manuals supplied by manufacturers for platform system components can serve as the basis for these procedures.

1910.66(i)(1)(v) – The employer shall certify that employees have been trained in operating and inspecting a working platform by preparing a certification record which includes the identity of the person trained, the signature of the employer or the person who conducted the training and the date that training was completed. The certification record shall be prepared at the completion of the training required in paragraph (i)(1)(ii) of this section, and shall be maintained in a file for the duration of the employee’s employment. The certification record shall be kept readily available for review by the Assistant Secretary of Labor or the Assistant Secretary’s representative.
