Portable Ladder Fall Protection Systems

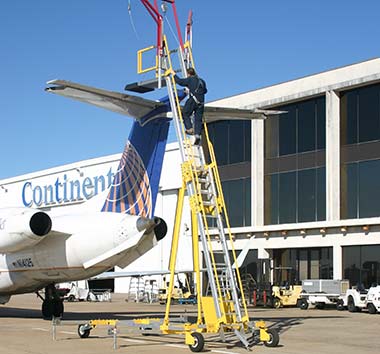

Easy access. 100% fall protection from the ground up. Achieve both for up to two users for the duration of the work with our Freestanding Ladder System. System configurations include guardrails and the use of multiple self-retracting lifelines (SRLs). These models are ANSI, OSHA and CE compliant.

The system includes numerous pre-engineered components to make it the perfect solution to your fall protection challenge. All of our systems are extremely durable and built to last with world-class quality, materials and workmanship. They are unique solutions to unique challenges, and fall protection you can trust.

Mobile

Mobile

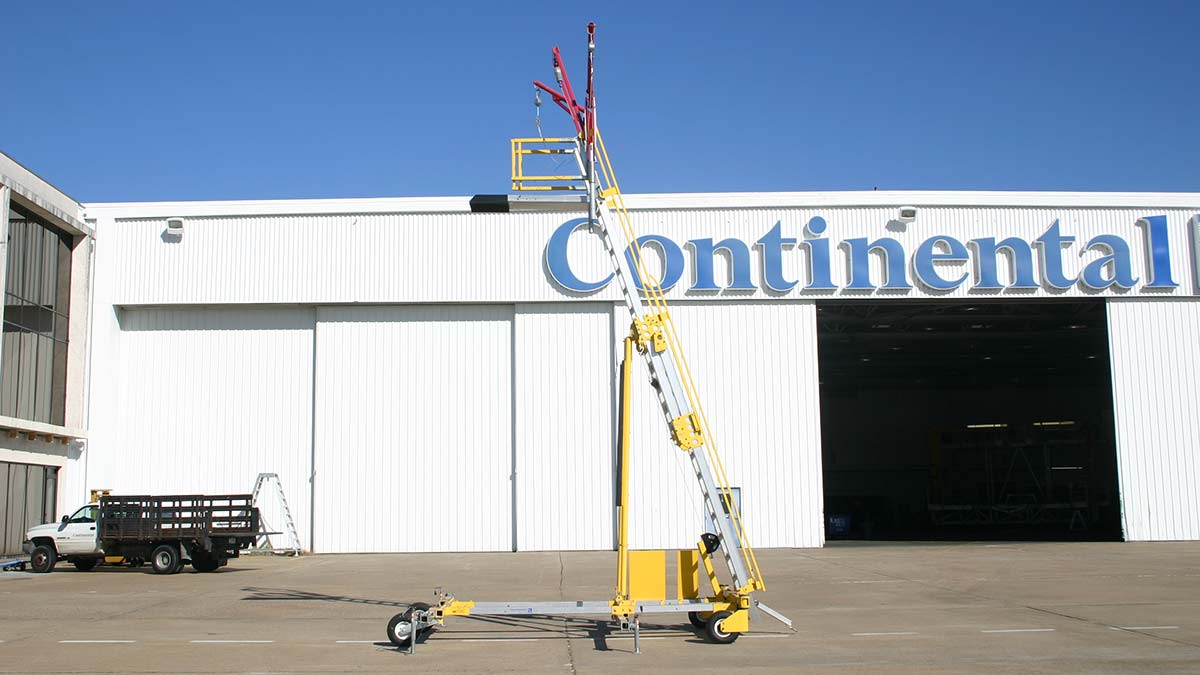

FLS Freestanding Ladder Systems are designed to be moved manually or with the use of a tow bar and service vehicle. The system can be easily transported to locations where fall protection is needed to access work areas at height.

Versatile

Versatile

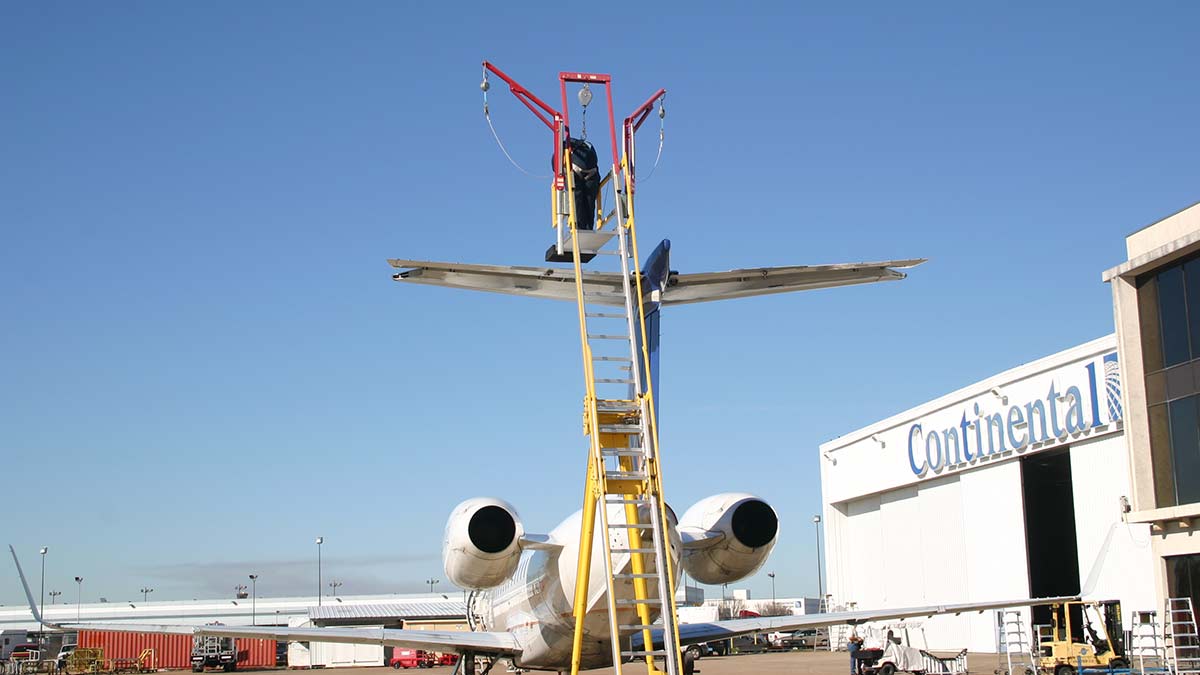

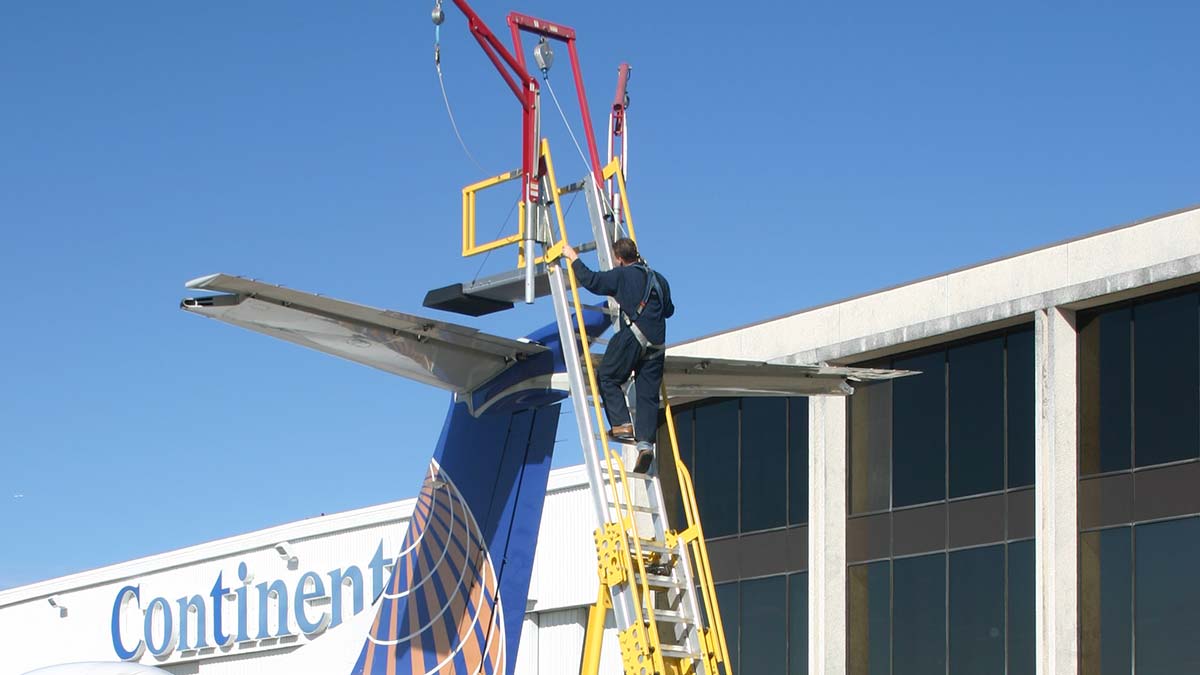

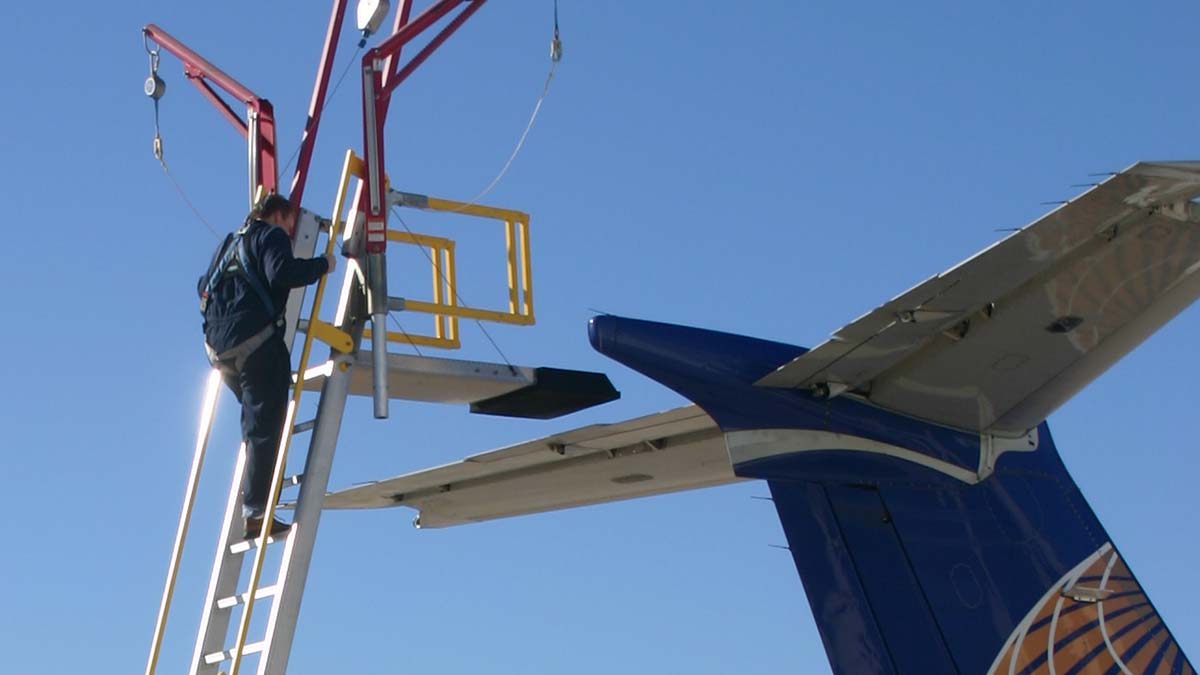

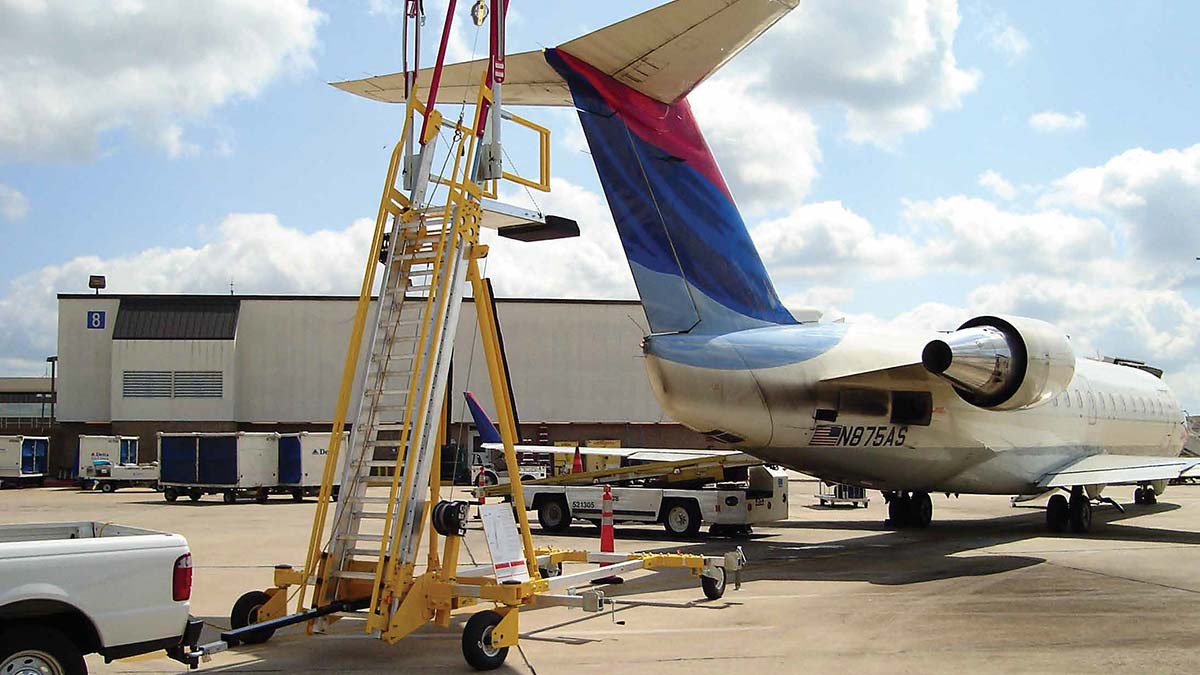

FLS Freestanding Ladder Systems can be utilized over a variety of aircraft, equipment, vehicles and structures. The systems are designed for indoor and outdoor use and feature heavy-duty stabilization for use on uneven ground.

Lightweight

Lightweight

Lightweight construction make FLS Freestanding Ladder Systems easy to move into position by hand, forklift or other service vehicle.

Multi-User

Multi-User

System provides easy access and 100% fall protection from the ground up for up to two users for the duration of the work.

Custom Designs

Custom Designs

Systems are constructed from powder-coated, anodized high strength alloy specifically engineered for extra tall and wide applications. The enclosed rail keeps debris from weather elements out. All FLS systems are extremely durable and built to last with world class quality, materials and workmanship.

Durable

Durable

FLS Freestanding Ladder Systems feature adjustable height capability. With a built-in winch for easy adjustment and multiple height ranges available, this system can be used to meet a variety of your access needs where needed while providing complete fall-arrest protection for workers.

Height Adjustable

Height Adjustable

FLS Freestanding Ladder Systems feature adjustable height capability. With a built-in winch for easy adjustment and multiple height ranges available, this system can be used to meet a variety of your access needs where needed while providing complete fall-arrest protection for workers.

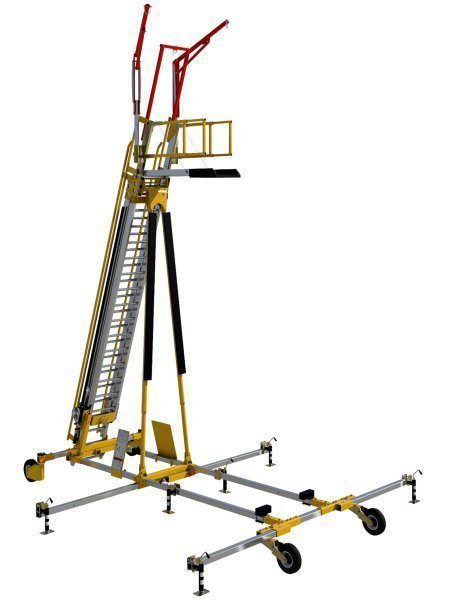

Freestanding Ladder System Specifications

Part No.HeightWheelsUsers
19851771510.75 ft.-15.5 ft.16 in. Pneumatic2
19851771714.5 ft.-23 ft.16 in. Pneumatic2
19851771918.25 ft.-31 ft.16 in. Pneumatic2

OSHA Regulations For Aircraft Fall Protection

Flexible Lifeline Systems portable ladder and stair systems meet the applicable standards of ANSI 14.3 Requirement for Fixed Ladders, OSHA 1910.26 Portable Metal Ladders, CSAZ11-M81 Portable Ladders, OSHA 1910.23 Guarding floor/wall Openings & Holes, and the Manitoba Workplace Safety & Health Division Fall Protection Guidelines.

These systems also comply with the latest OSHA/ANSI standards and regulations including OSHA 29 CFR Walking-Working Surfaces Rule and ANSI Z359.16 Product Performance Standard – Safety Requirements for Climbing Ladder Arrest Systems.

On November 17, 2016, OSHA published its final rule on Walking and Working Surfaces. The final rule covers a wide variety of general industry entities, including building management services, utilities, warehousing, retail, window cleaning, chimney sweeping and outdoor advertising. It does not change construction or agricultural regulations.

ANSI Z359.16 – This new standard received approval by the ASSE Board of Standards Review on November 2, 2016. It establishes requirements for the performance, design, marking, qualification testing, instructions for use, inspection, maintenance and storage, and removal from service of vertically oriented climbing ladder fall arrest systems consisting of flexible and rigid carriers with multiple attachment points and associated carrier sleeves for users within the capacity range of 130 to 310 pounds (59 to 141kg).
