Fall Protection Anchors For A Wide Range Of Suspended Access Applications

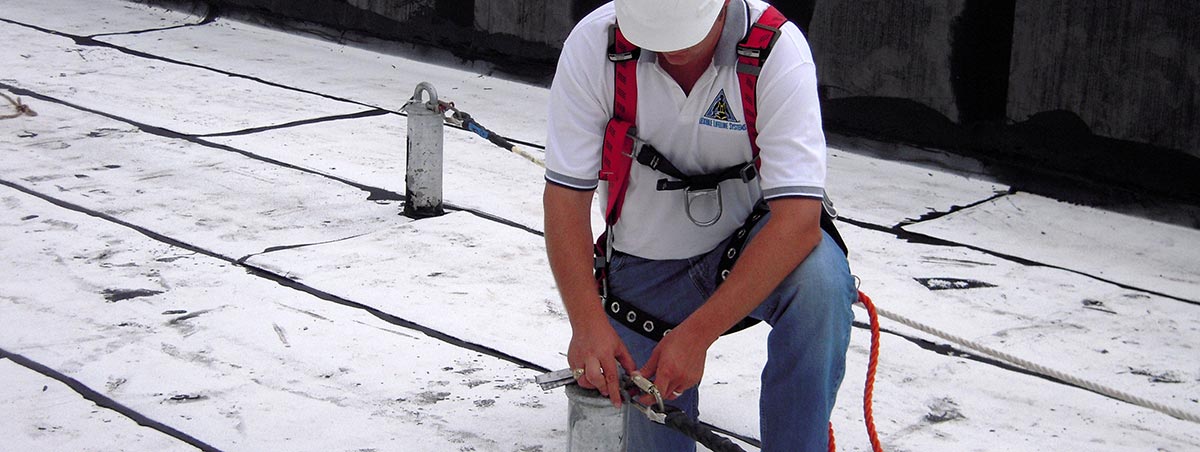

FLS Bolt-Around-Beam Tieback Anchors are a safe, practical and permanent anchorage solution. Cost effective and proven, Tieback Anchors are used for fall protection and a wide range of suspended access applications, including window cleaning and exterior building maintenance. The Tieback anchor provides an ideal safety solution for rope descent systems where specific use and height restrictions apply and workers are operating suspended power platforms and temporary rigging equipment, or anywhere leading edge hazards exist.

Effectiveness

The FLS Tieback Anchor System provides an ideal safety solution when any of the following are needed:

  • Lifeline anchorage for workers operating on powered suspended platforms
  • Fall protection anchorage where leading edge hazards exist
  • Safety tieback anchorage for temporary rigging equipment
  • Rope descent system anchorage where specific use and height restrictions apply

Usages

Suitable for all flat roofs as fall arrest anchors for securing workers’ lifelines, suspension of boatswain chair or the tying back of temporary suspended access equipment such as outrigger beams.

TIEBACK ANCHOR REQUIREMENTS

INSPECTION

INSPECTION

Regulatory authorities require anchors to be inspected annually by a qualified person with the inspection date, name of the inspector, his signature and company plus any comments recorded in the Building Façade Maintenance Equipment log book.

RECERTIFICATION

RECERTIFICATION

FLS recommends anchors be re-certified every five (5) years or when re-roofing or renovating pertinent to the window cleaning system. The report and certification shall be included in the logbook. The re-certification shall be under the direct supervision of a registered professional engineer.

Bolt-Around-Beam Tieback Anchor Features

Bolt-Around-Beam Tieback Anchor Part Numbers

Galvanized Steel Post with Galvanized Eye

Part #Ht.Base*Bolt(Kit)
10TBBU10121414"10"12"(2A)
10TBBU10181414"10"18"(2B)
10TBBU10321414"10"32"(2C)
10TBBU12121414"12"12"(2A)
10TBBU12181414"12"18"(2B)
10TBBU12321414"12"32"(2C)
10TBBU15121414"15"12"(2A)
10TBBU15181414"15"18"(2B)
10TBBU15321414"15"32"(2C)
10TBBU12121818"12"12"(2A)
10TBBU12181818"12"18"(2B)
10TBBU12321818"12"32"(2C)
10TBBU15121818"15"12"(2A)
10TBBU15181818"15"18"(2B)
10TBBU15321818"15"32"(2C)
10TBBU15122424"15"12"(2A)
10TBBU15182424"15"18"(2B)
10TBBU15322424"15"32"(2C)

Galvanized Steel Post with Stainless Steel Eye

Part #Ht.Base*Bolt(Kit)
10TBBS10121414"10"12"(2A)
10TBBS10181414"10"18"(2B)
10TBBS10321414"10"32"(2C)
10TBBS12121414"10"12"(2A)
10TBBS12181414"12"18"(2B)
10TBBS12321414"12"32"(2C)
10TBBS15121414"12"12"(2A)
10TBBS15181414"15"18"(2B)
10TBBS15321414"15"32"(2C)
10TBBS12121818"15"12"(2A)
10TBBS12181818"12"18"(2B)
10TBBS12321818"12"32"(2C)
10TBBS15121818"12"12"(2A)
10TBBS15181818"15"18"(2B)
10TBBS15321818"15"32"(2C)
10TBBS15122424"15"12"(2A)
10TBBS15182424"15"18"(2B)
10TBBS15322424"15"32"(2C)

Stainless Steel Post with Stainless Steel Eye

Part #Ht.Base*Bolt(Kit)
10TBBSS10121414"10"12"(2A)
10TBBSS10181414"10"18"(2B)
10TBBSS10321414"10"32"(2C)
10TBBSS12121414"12"12"(2A)
10TBBSS12181414"12"18"(2B)
10TBBSS12321414"12"32"(2C)
10TBBSS15121414"15"12"(2A)
10TBBSS15181414"15"18"(2B)
10TBBSS15321414"15"32"(2C)
10TBBSS12121818"12"12"(2A)
10TBBSS12181818"12"18"(2B)
10TBBSS12321818"12"32"(2C)
10TBBSS15121818"15"12"(2A)
10TBBSS15181818"15"18"(2B)
10TBBSS15321818"15"32"(2C)
10TBBSS15122424"15"12"(2A)
10TBBSS15182424"15"18"(2B)
10TBBSS15322424"15"32"(2C)
All Mounting hardware is included.
Kits consist of 4 bolts (5/8” x the designated bolt length), 16 nuts (5/8”) and 8 flat washers (5/8”)
*All bases are square (ie 10”x10”, 12”x12”, or 15”x15”)
