Pipe Rack Horizontal Lifeline

Multi Span Pipe Rack Lifelines

Our team of trained, certified technicians and project engineers have decades of experience Installing permanent horizontal lifelines in a pipe racks.

Talk to an ExpertTalk to an Expert

Or, give us a call: 1-800-353-9425

Unique Solutions For Safety At Height In Oil & Gas Refineries

When other means of eliminating the need to access pipe rack have been exhausted, Multi Span horizontal lifeline systems can be design to protect those workers who must access the pipe rack. Factors such as heat, tight spaces, unstable and slippery walking surfaces, often increase the risk of falling.

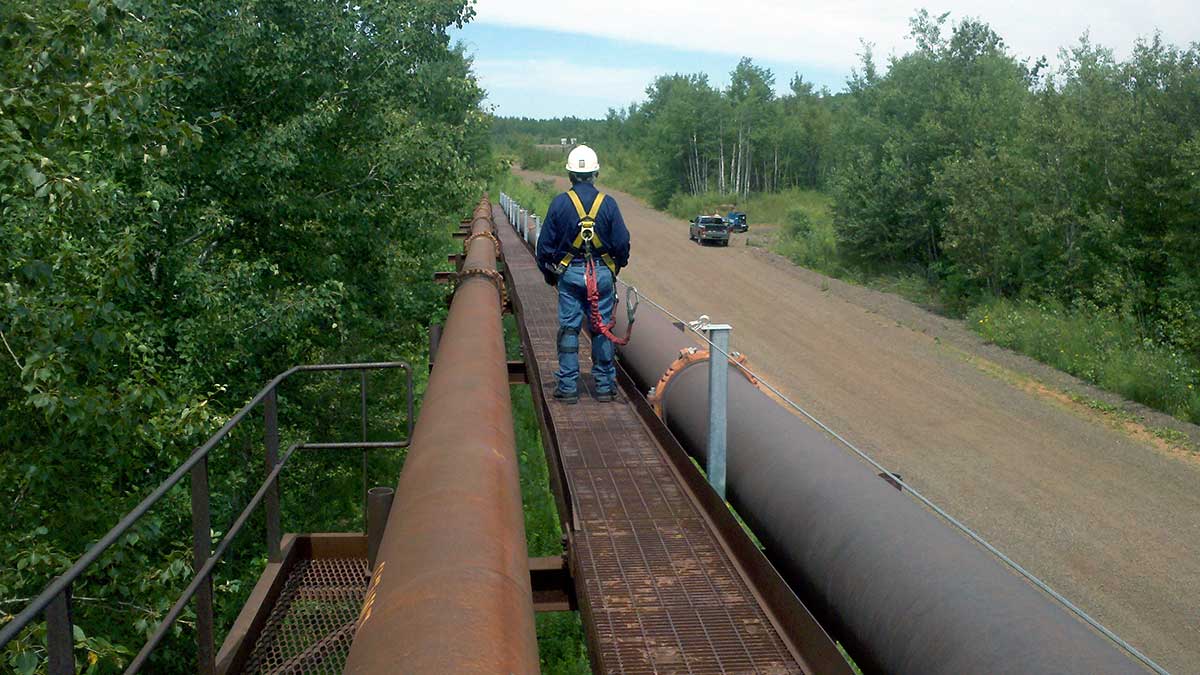

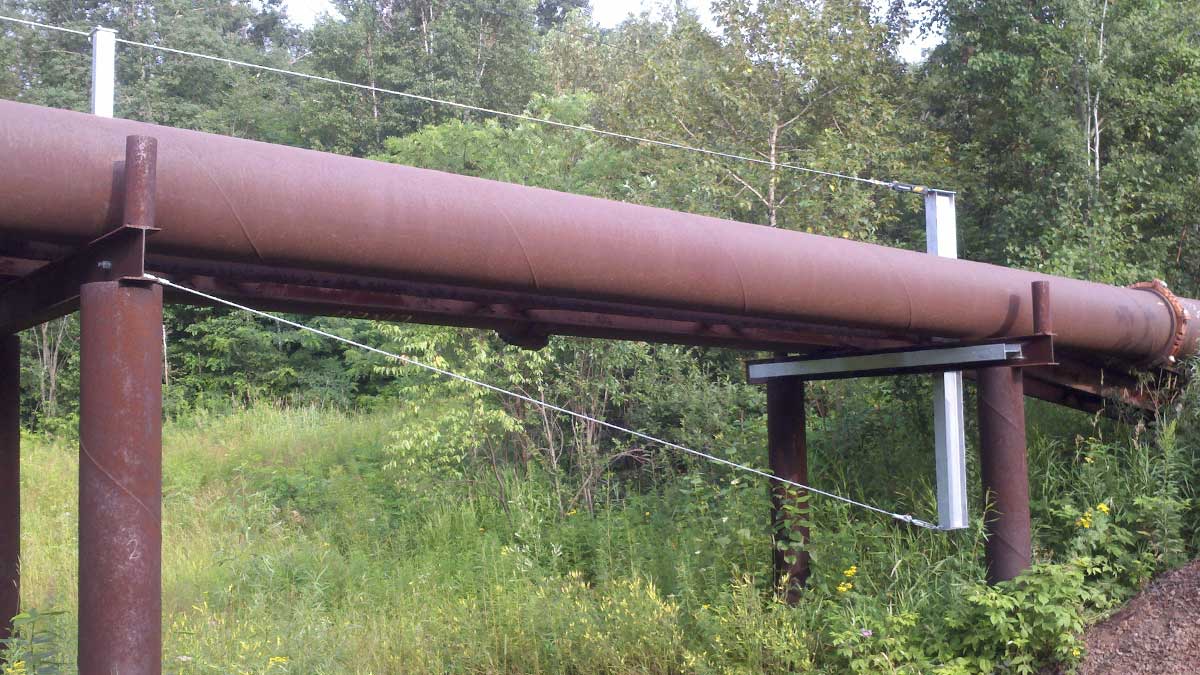

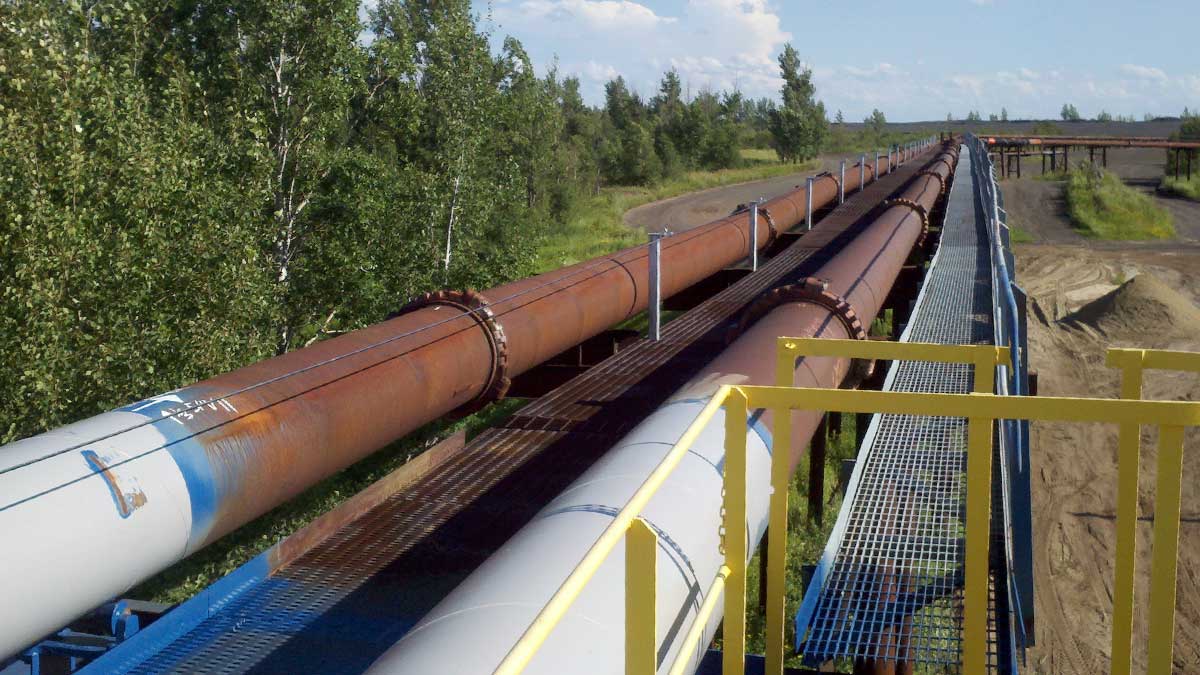

Top of rack lifelines will often have support stanchions to raise the level of the lifeline to shoulder height to reduce fall distances and minimize impact with obstructions below the work level. In-rack lifelines often attach to the existing pipe rack structure.

Expertise in Pipe Rack Lifeline Systems

Whenever possible we will design a solution that allows the lifeline supporting brackets to clamp to the pipe rack structure. This eliminates the need for hot work permits and speeds up the installation process.

Installing a permanent horizontal lifeline in a pipe rack is one of the more challenging installations we face. Our team of trained and certified technicians and project engineers will develop a safe work plan to ensure the protection of our employees while working at your facility.

Continuous Fall Protection

Lifeline Systems feature intermediate supports and cable shuttles allowing users to pass thru without disconnecting from the lifeline, ensuring 100% tie-off.

Multi-User Fall Protection

Systems are engineered to extend fall safety continuously for the number of users you require (usually three).


Tough and long lasting multi span horizontal lifeline systems are made from Grade 316 stainless steel 5/16″ (8mm) diameter wire and brackets.

Standards Compliant

FLS Horizontal Lifelines has been third-party tested. They meet both OSHA and ANSI requirements as well as standards set by CSA 13-04 & 16-04.

Proprietary Configurator Tool

Our configurator quickly specs out your entire proposed system providing you a quick and accurate solution after a simple site survey to confirm your safety needs.
