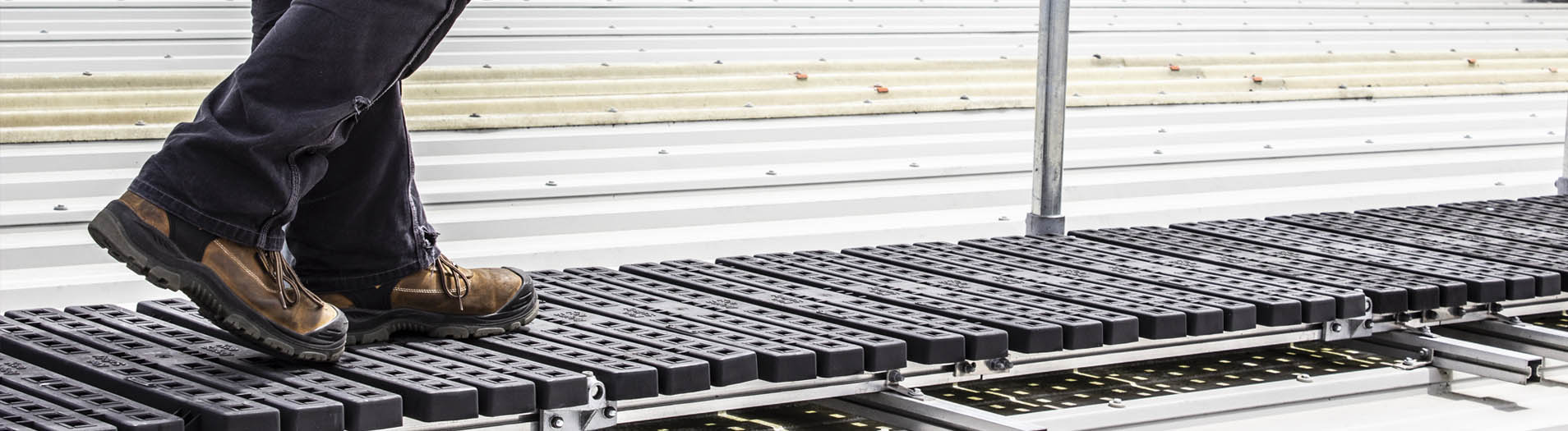

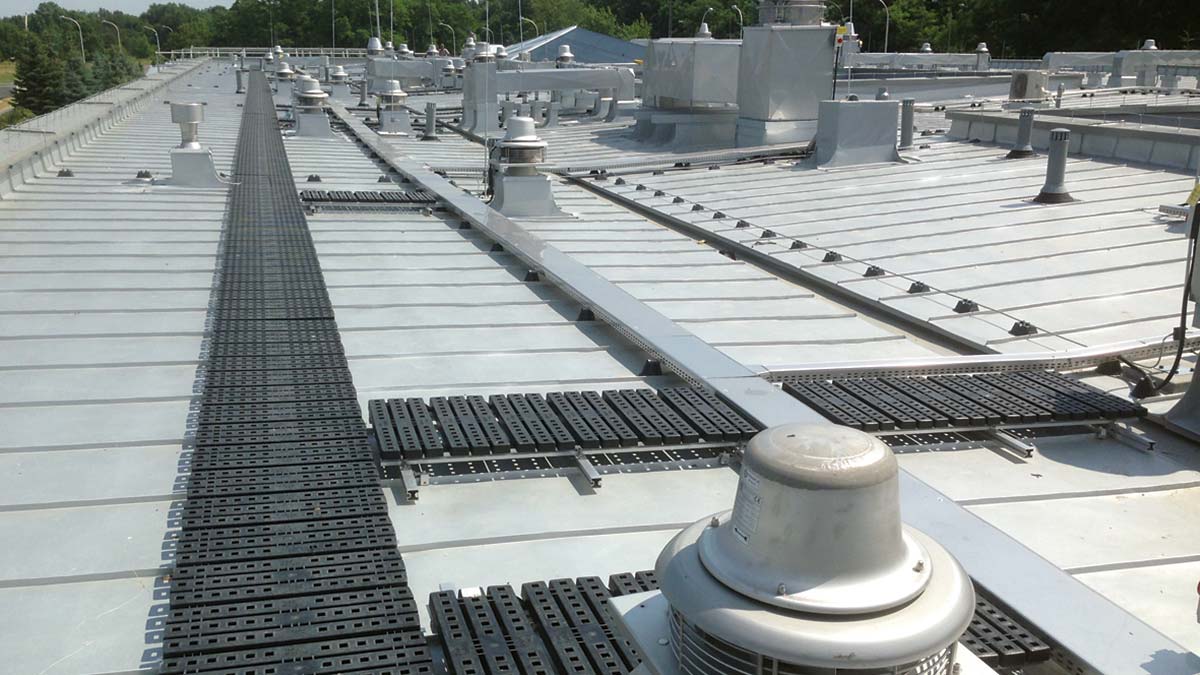

The FLS Modular Rooftop Walkway provides a safe walking surface that protects the rooftop and any workers who require roof access. The walkway evenly disperses the load generated from foot traffic across the roof surface. It also provides a clearly marked path further protecting the roof from avoidable damage.
Modular Rooftop Walkway treads are designed to meet and exceed the standards set by EN 516 (Prefabricated Accessories for Roofing – Installations for roof access – Walkways, treads and steps). The system tread consists of a high-grade nylon with raised roughened sections providing exceptional slip resistance. Treads come attached to pre-assembled sections. When supplied separately for shorter walkway sections, treads are quickly fastened in place using self drilling screws. Spacers are incorporated into the tread design for correct alignment. Treads can be trimmed when necessary to adapt to tight spaces.

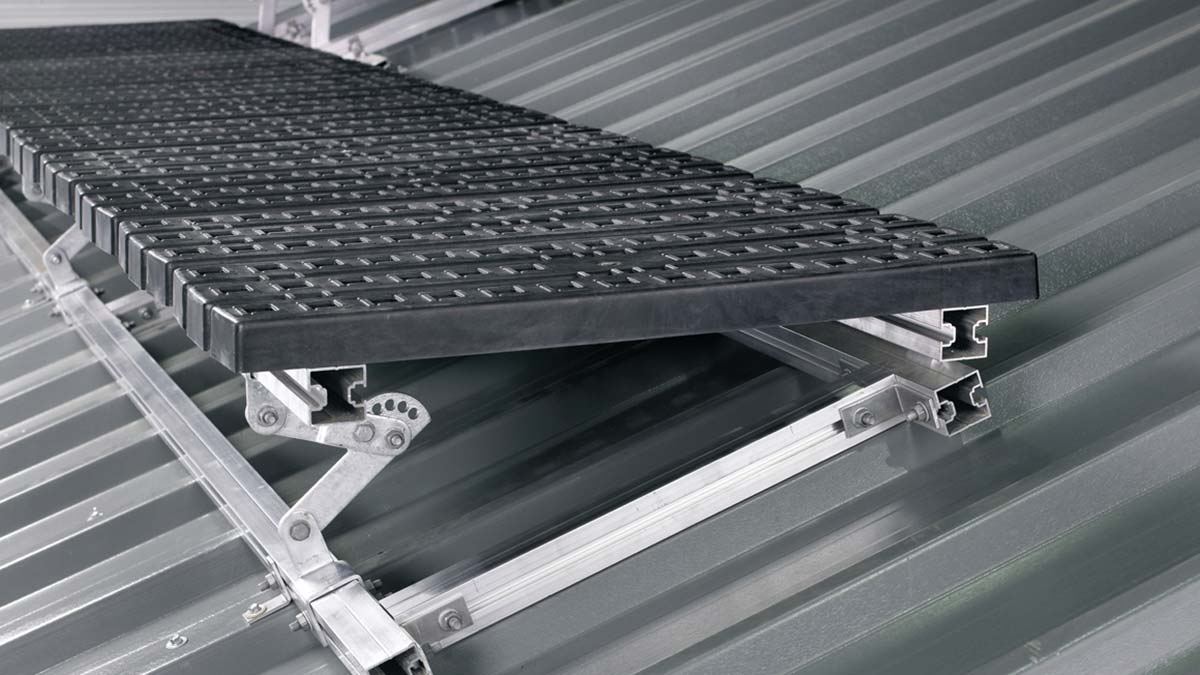

The Modular Rooftop Walkway is engineered to make the design and installation of a walkway system across a sloping roof a simple and efficient process. A sub-frame is mounted to the rooftop and connected to walkway sections with hinged brackets at the rear of the assembly. Rotating arms at the front of the assembly are used to level the walking surface. Only standard components are needed for a complete walkway system.

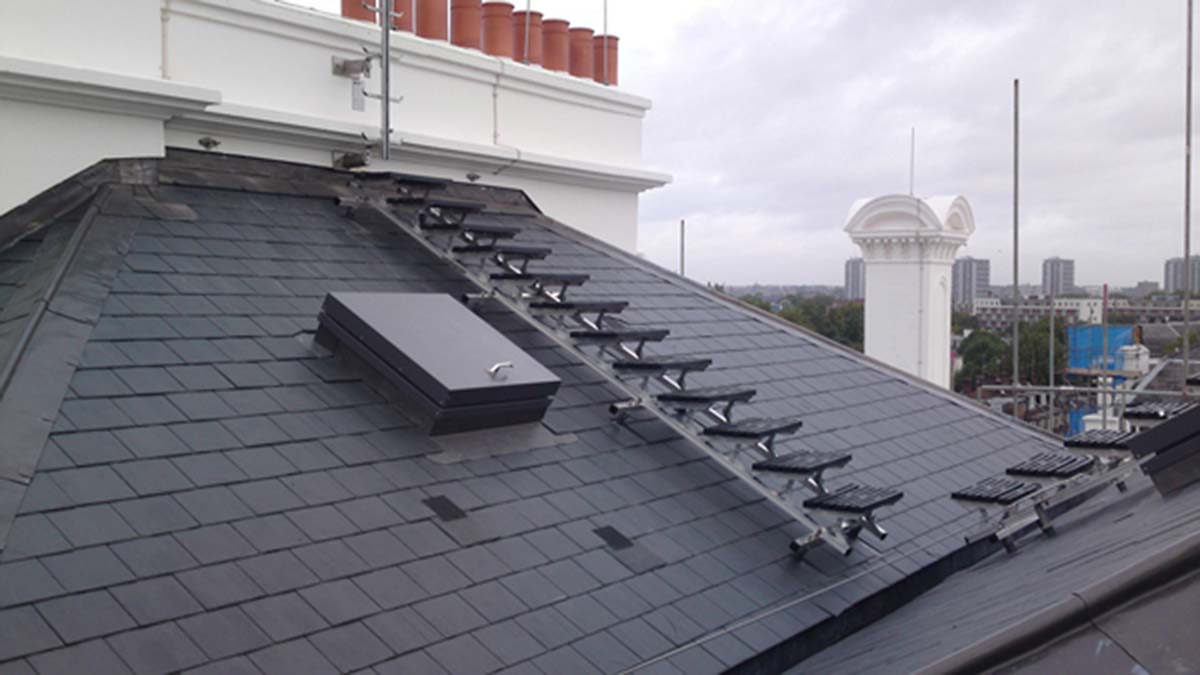

Our Rooftop Walkway is engineered for use with virtually any roof configuration including flat, barrel-shaped, rounded and sloping rooftops. The system has step and continuous flat pathway options allowing access to any area of the roof surface angled from 0 to 35 degrees.
There are no custom parts required for the installation of the Modular Rooftop Walkway. The system is made up of 5 foot and 10 foot standard modules and uses standard pre-fabricated components. The design and specification of rooftop walkways are quick and simple, and installation is easy and efficient.
The Modular Rooftop Walkway system meets the standards of EN 516:2006 (Prefabricated Accessories for Roofing Installations for roof access Walkways, treads and steps). At this time, there are no North American standards applicable to walkways of this kind.
